48KP25HDAT 20 Ton Tilt Trailer
Specifications
| G.V.W.R. |
48,000 # |
Axles |
2-22500# Outboard Brakes Piloted Hub |
| G.A.W.R. (each axle) |
22,500 # |
Suspension |
9700 Hutch |
| Coupler |
4 Bolt Pintle |
Tires |
215 75R 17.5 16 Ply Radial |
| Safety Chains |
High Tensile Safety Chains |
Wheels |
Hub Piloted 17.5 8 hole |
| Jack |
2-25K-2 Speed |
Floor |
Standard Oak/Treated Pine |
| Neck |
5' with storage |
Lights |
LED Lights / DOT Specs. |
| Frame |
14" I Beam 30# per foot |
Finish (prep) |
2 Coats Primer |
| Crossmembers |
4" I Beam 80,000# Yield on 12" C |
Finish |
Paint including underneath |
| Side Rails |
8" Channel |
Paint |
2 Coats |
Standard Features
- 1" D Rings-4 per side
- Oak Decking with Recessed Deck Straps
- Sealed wiring harness
- LED Rubber Mounted Sealed Beam Lights
- 2 year warranty
- Air Brake Axles
- 102" Wide
- 9700# Hutch HD Suspension
- Standard ABS Air Brakes
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted underneath
- Storage Box with Locking Lid
- Step up to deck
- High Tensile safety chains
Available Options: on most models
- Ramps Various Widths and Lengths
- Additional Deck Length
- Winch and Straps
- Spare Tire and Wheel
- Power Tilt
- Steel Deck
- 235 75 R 17.5 16 Ply Radials
- 54,000# GVWR
- Hydraulic Ramps
- Cleated Deck
- Any other custom needs

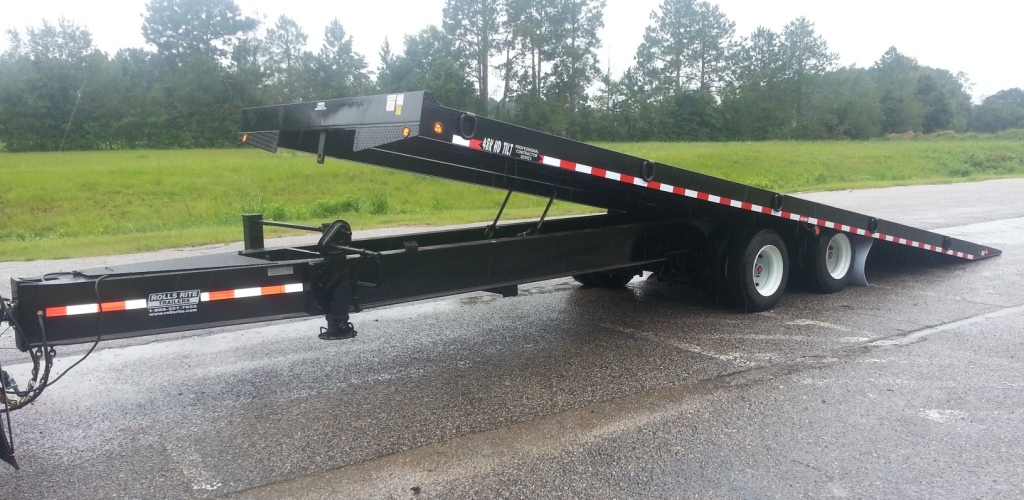

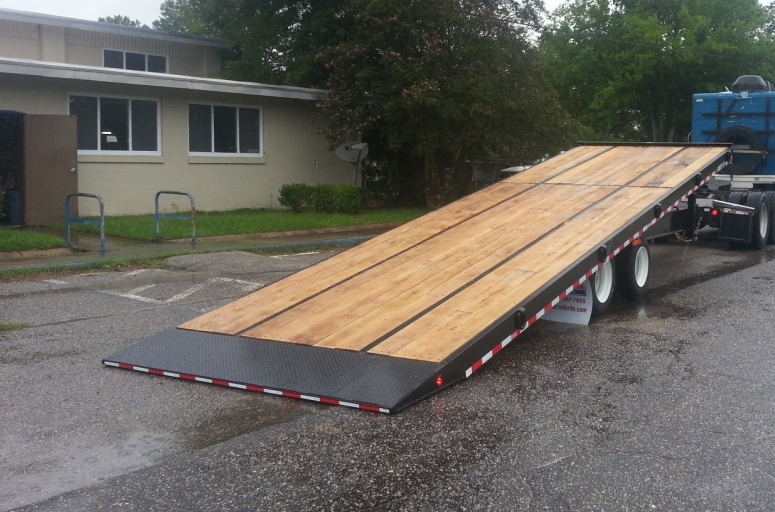

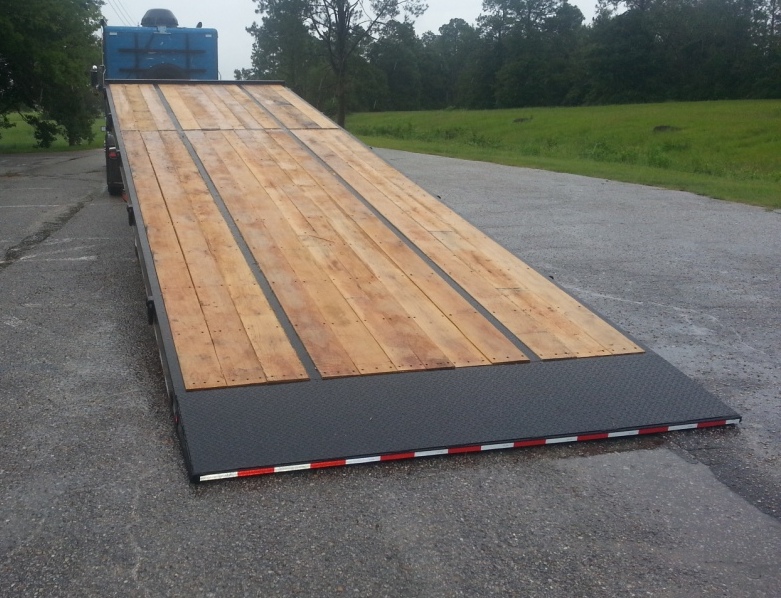

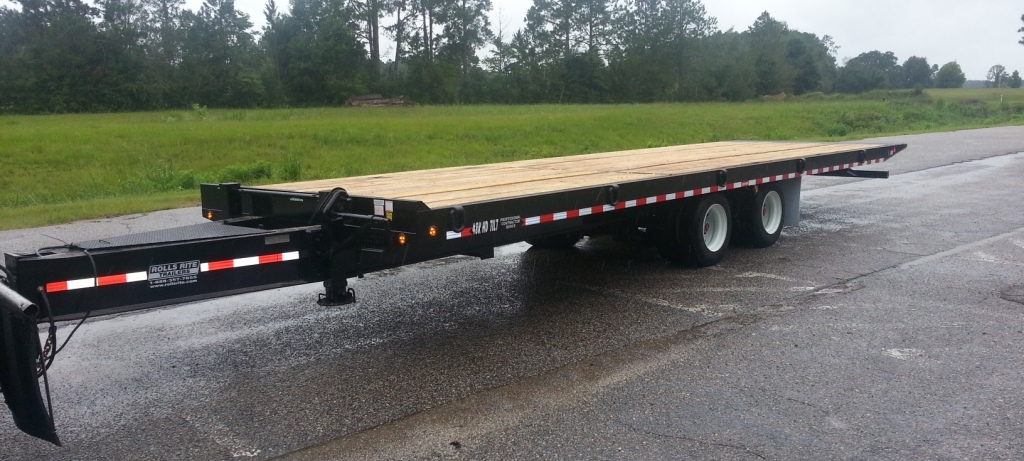

Additional Images
