14KP22TE Tilt Trailer

Specifications

G.V.W.R. 14,000 # Axles 7K Dexter Torflex
G.A.W.R. (each axle) 7,000 # Suspension Torsion
Coupler Adjustable Round 2 5/16 Tires 235 80R 16
Safety Chains High Tensile Safety Chains Wheels 16" Dual 8 Lug
Jack 1 - 12K Jacks Floor Standard Oak/Treated Pine
Neck N/A Lights LED Lights / DOT Specs.
Frame 6" Channel Finish (prep) 2 Coats Primer
Crossmembers 3" Channel 16" O.C. Finish Paint including underneath
Side Rails 6" Channel Paint 2 Coats

Standard Features

  • Oak / Treated Pine Decking
  • D-Rings
  • Recessed Deck Straps
  • Sealed wiring harness
  • LED Rubber Mounted Sealed Beam Lights
  • 2 Year Warranty
  • Dexter Axles
  • Slipper Spring Suspension
  • Electric Brakes on All Axles
  • Radial Tires
  • Meets and Exceeds D.O.T. Regulations
  • Primed and Painted Underneath

Available Options: On Most Models

  • Dual Jacks
  • Additional Deck Length
  • Cleated Rear Deck (Tilt)
  • Spare Tire and Wheel
  • Power Tilt
  • Steel Deck
  • Any other custom needs

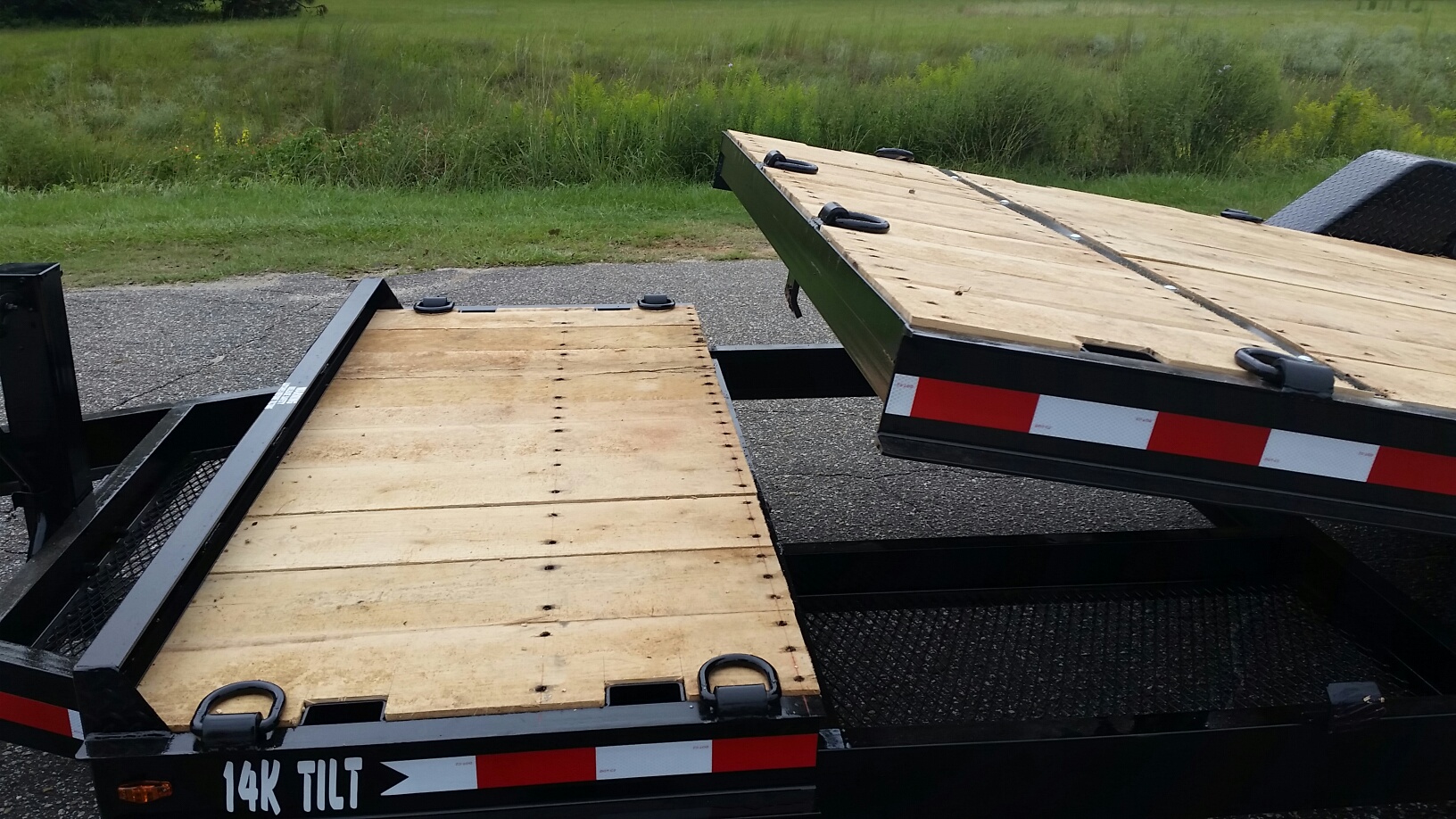

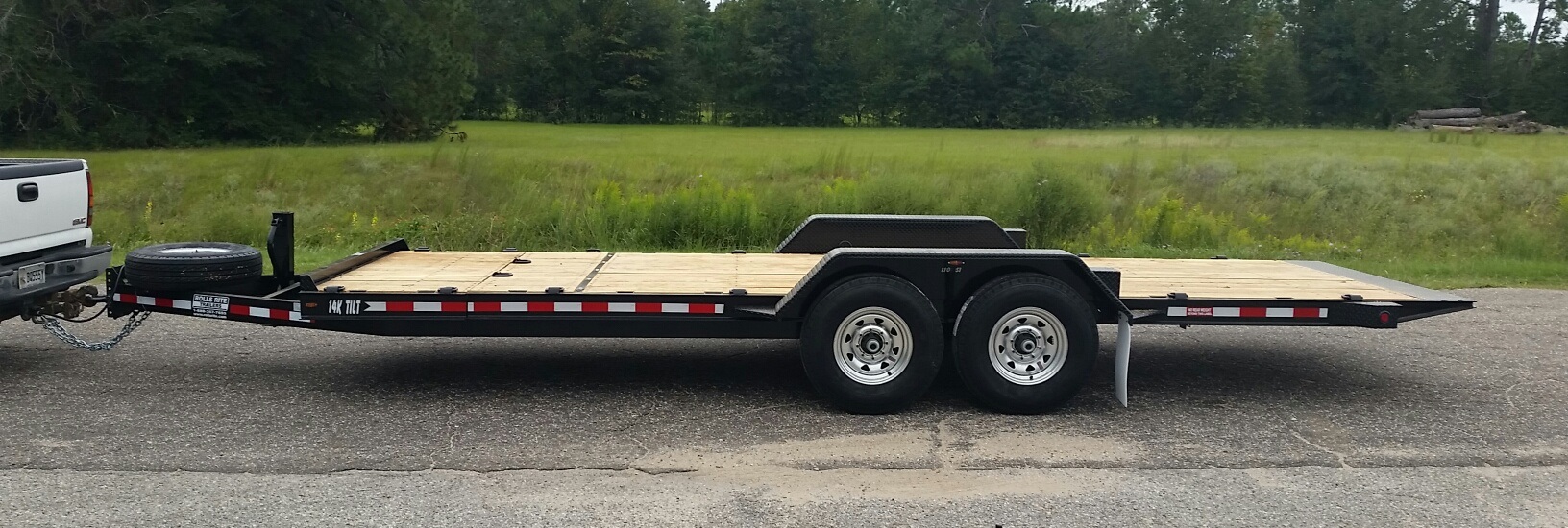

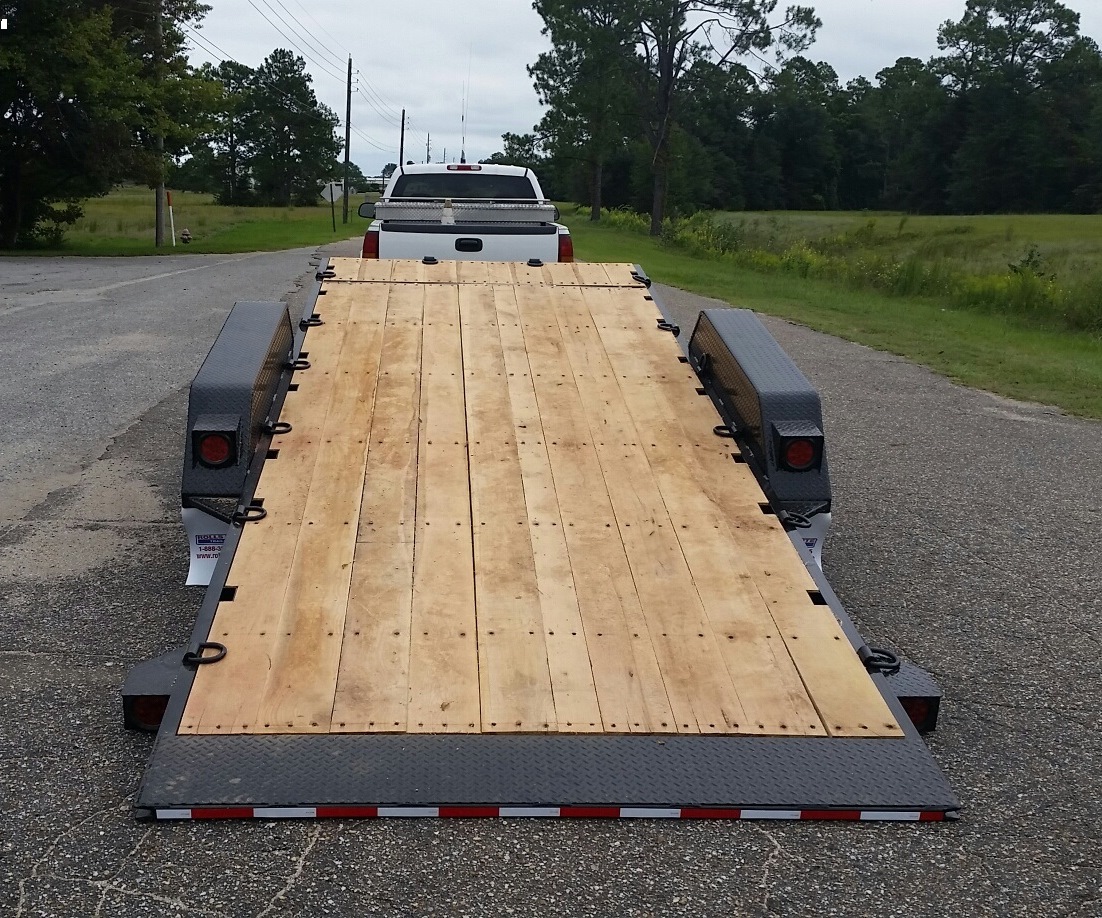

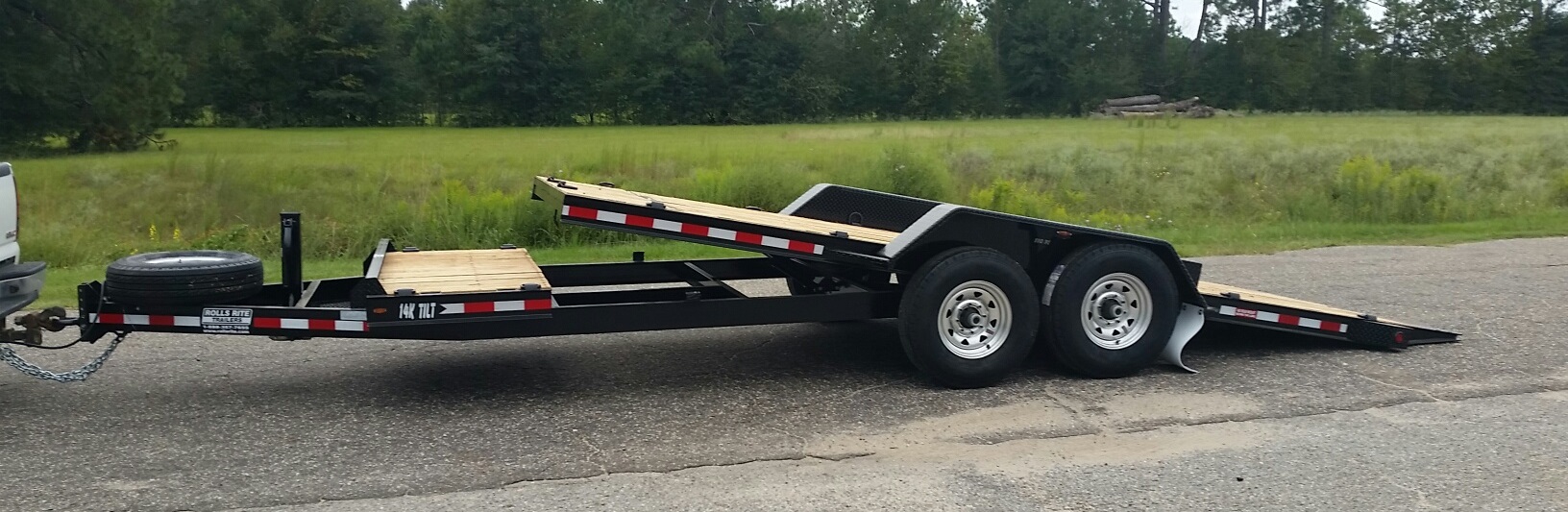

Additional Images
