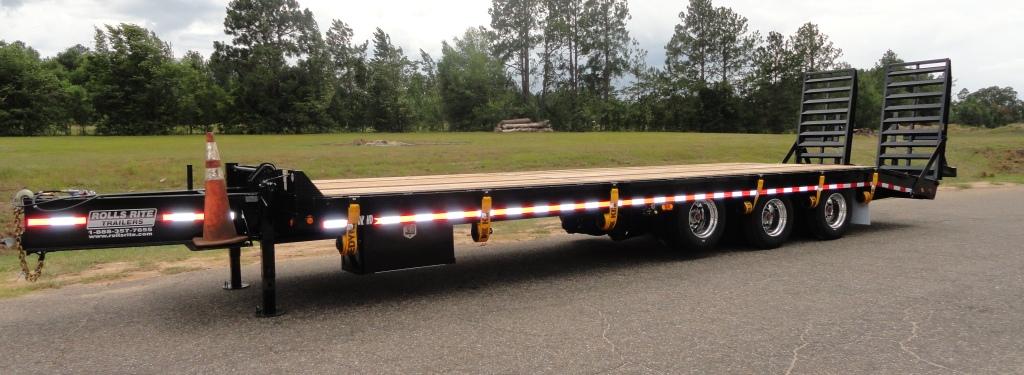

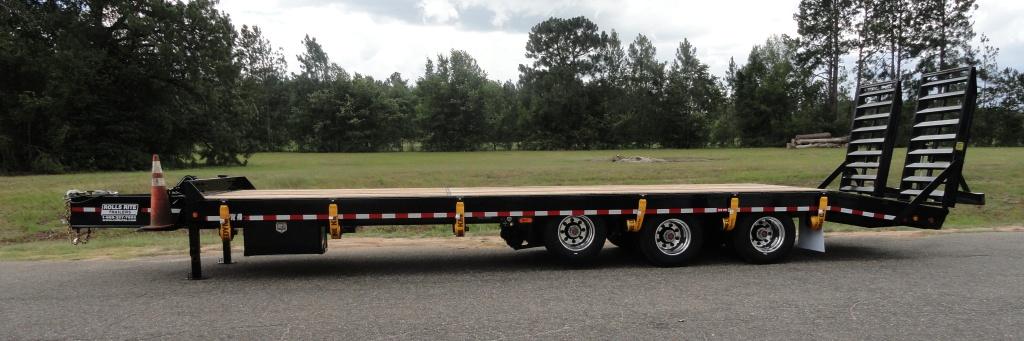

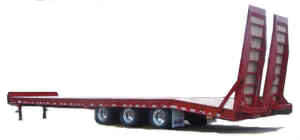

70KP36HDA Professional Contractor Series

Specifications

G.V.W.R. 70,000 # Axles Triple 22,500 Dana Air Brake
G.A.W.R. (each axle) 22,500 # Suspension 9700 Hutch
Coupler Adjustable Pintle Tires 235 75R 17.5 16 Ply Radial
Safety Chains High Tensile Safety Chains Wheels 17.5 Dual 8 Lug
Jack Dual 2 Speed 25K Floor Standard Oak/Treated Pine
Front Rail
8" Channel Lights LED Lights / DOT Specs.
Frame 16"I Beam 36 # per foot Finish (prep) 2 Coats Primer
Crossmembers 4" I Beam 12" O.C. Finish Paint including underneath
Side Rails 10" Channel 25# per foot Paint 2 Coats

Standard Features

  • 60000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
  • Low Profile 34" Deck Height Pierced Frame
  • Rub Rails and Stake Pockets with Spools
  • Oak Decking with Recessed Deck Straps
  • Sealed Wiring Harness
  • LED Rubber Mounted Sealed Beam Lights
  • 2 Year Warranty
  • 22500# Dana Tri-Axles
  • 102" Wide
  • 9700 Hutch Suspension
  • Air Brakes
  • 235 75R 17.5 16 Ply Radial Tires
  • Hub Piloted Wheels With Outboard Brakes
  • Meets and Exceeds D.O.T. Regulations
  • Primed and Painted Underneath
  • 5FT Heavy Duty Spring Loaded Dozer Ramps

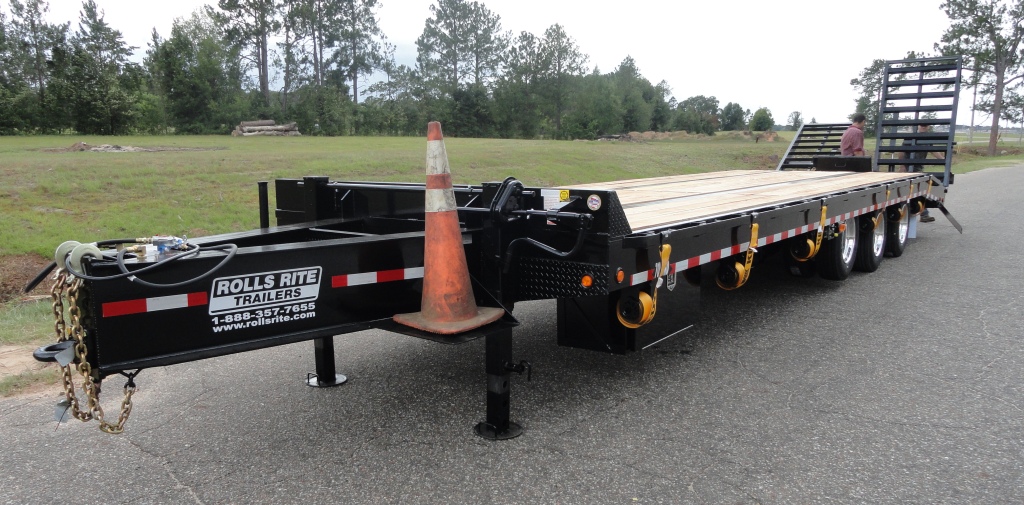

  • Storage With Locking Lid
  • Dual 50K Jacks - 2 Speed

Available Options: On Most Models

  • Rub Rails and Stake Pockets with Spools
  • Additional Deck Length
  • Pop-Up Dove Tail
  • Outriggers

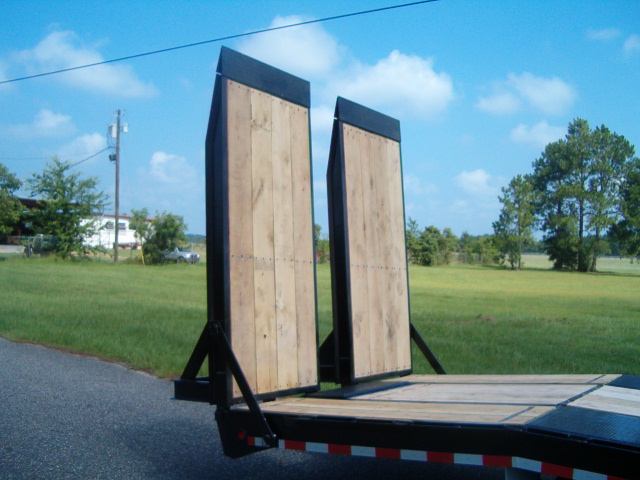

  • Wood filled Ramps
  • Hydraulic Ramps
  • Spare Tire and Wheel
  • Steel Deck

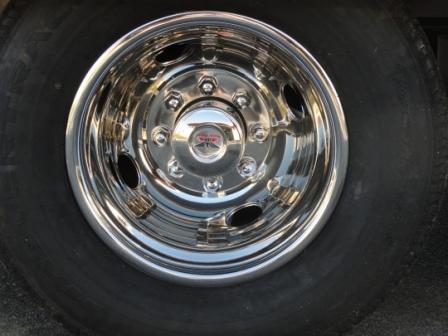

  • Chrome Simulated Wheels
  • Any other custom needs
