Specifications
| G.V.W.R. | 60,000 # | Axles | 3-22500# Outboard Brakes Piloted Hub |
| G.A.W.R. (each axle) | 22,500 # | Suspension | 9700 Hutch |
| Coupler | Adjustable Pintle | Tires | 215 75R 17.5 16 Ply Radial |
| Safety Chains | High Tensile Safety Chains | Wheels | 17.5 Dual 8 Lug |
| Jack | Dual 2 Speed 50K | Floor | Standard Oak/Treated Pine |
| Neck | N/A | Lights | LED Lights / DOT Specs. |
| Frame | 14" I Beam 30 # per foot | Finish (prep) | 2 Coats Primer |
| Crossmembers | 4" I Beam 80,000# Yield 12" C | Finish | Paint including underneath |
| Side Rails | 8" Channel | Paint | 2 Coats |
Standard Features
- 50000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Low Profile 34" Deck Height Pierced Frame
- Rub Rails and Stake Pockets with Spools
- Oak Decking with Recessed Deck Straps
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- 22500# Tri-Axles
- 102" Wide
- 9700 Hutch Suspension
- Air Brakes
- 215 75R 17.5 16 Ply Radial Tires
- Hub Piloted Wheels With Outboard Brakes
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath

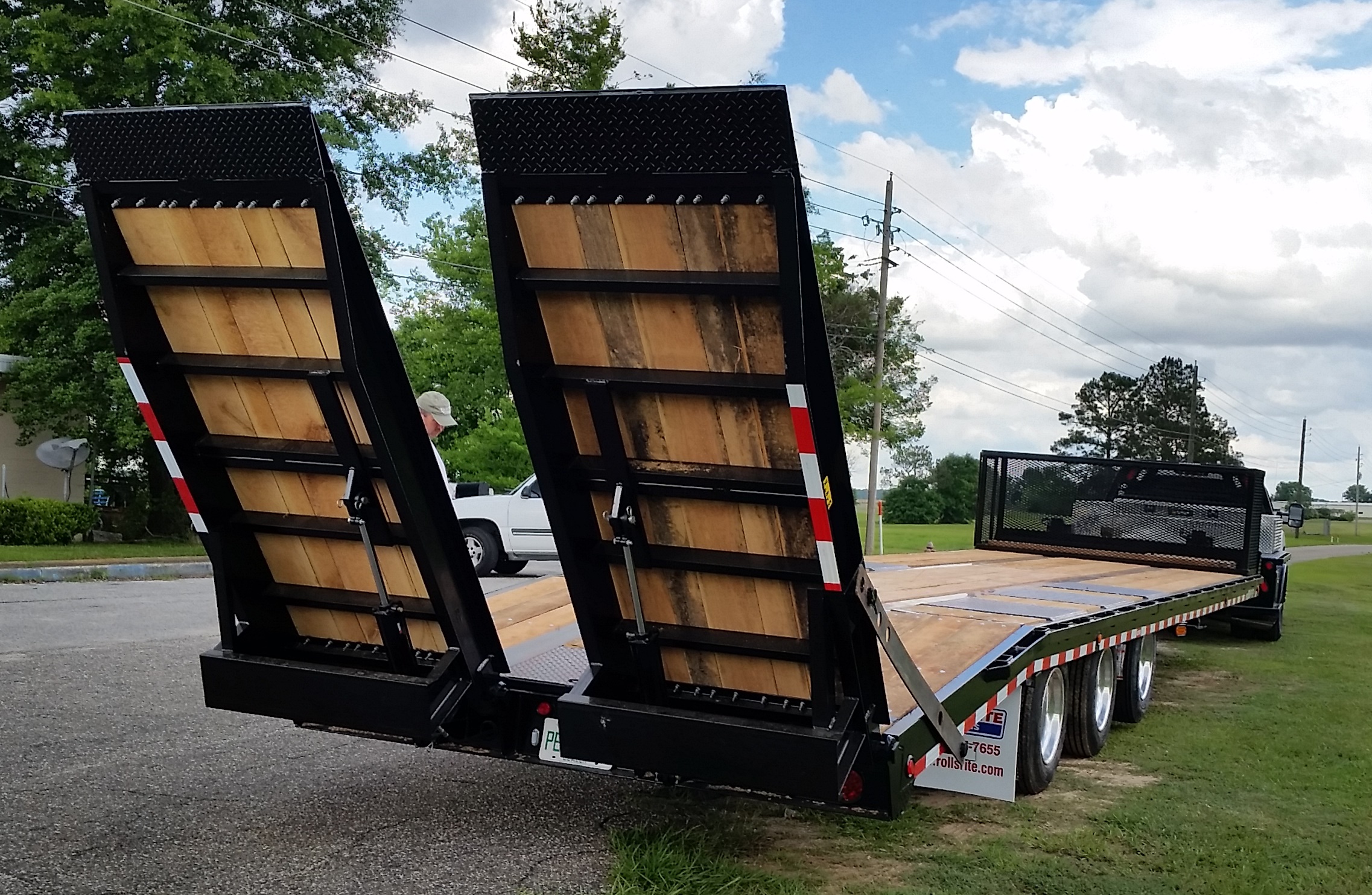

- 5FT Heavy Duty Spring Loaded Dozer Ramps
- Storage With Locking Lid
- Dual 50K Jacks - 2 Speed
Available Options: On Most Models
- Additional Deck Length
- Self Cleaning Dove Tail
- Winch and Straps
- Wood Filled Ramps
- Hydraulic Ramps 7" x 36" Different Sizes Available
- Spare Tire and Wheel
- Any other custom needs
Additional Images

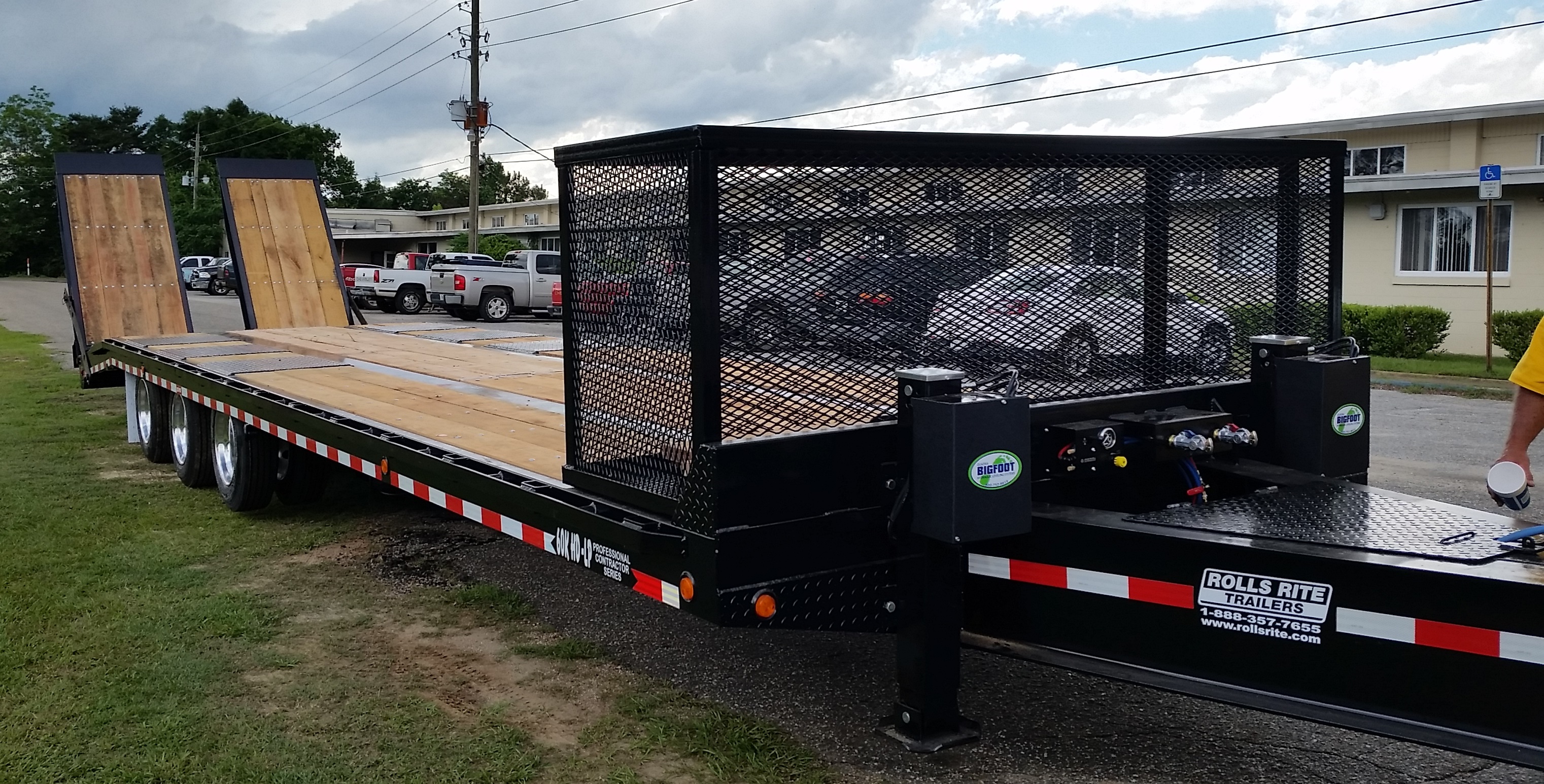

SHOWN WITH OPTIONAL EQUIPMENT

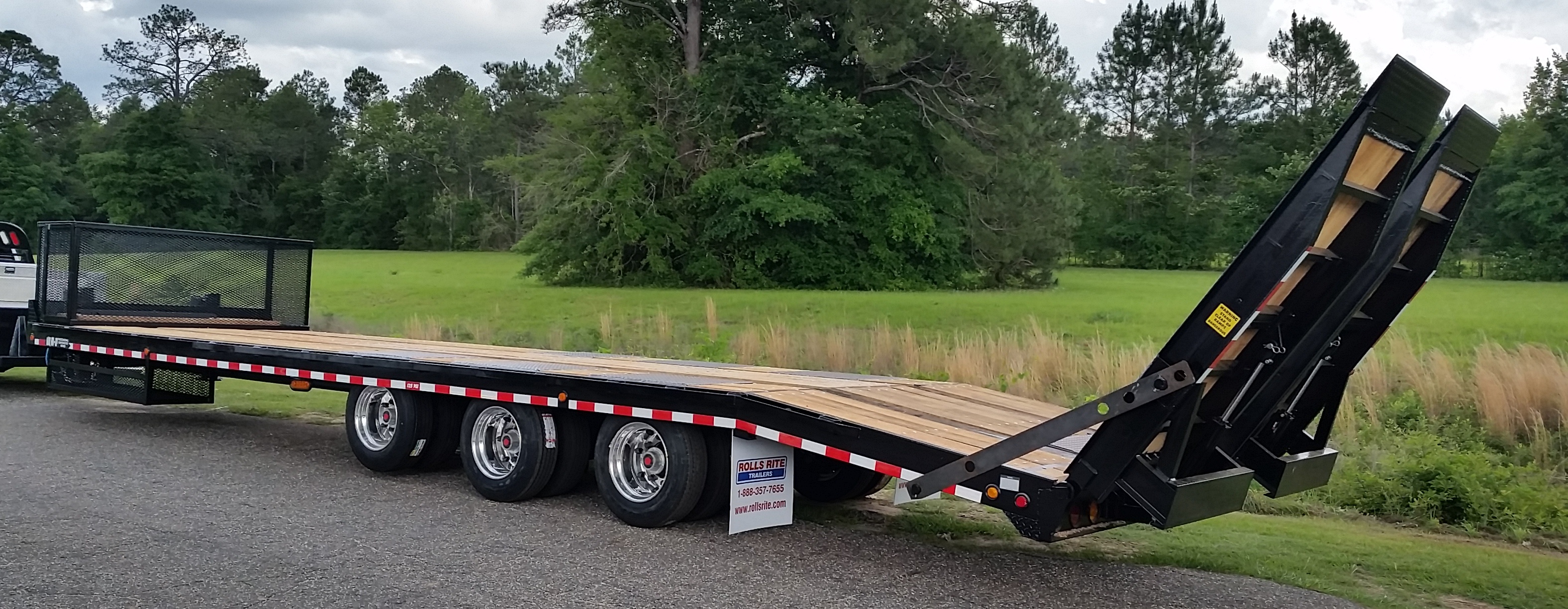

SHOWN WITH OPTIONAL EQUIPMENT
