Specifications
| G.V.W.R. | 52,000 # | Axles | 2-25000# Outboard Brakes Piloted Hub |
| G.A.W.R. (each axle) | 25000 # | Suspension | 9700 Hutch |
| Coupler | 4 Bolt Pintle | Tires |
235 75R 17.5 18 Ply Radial |
| Safety Chains | High Tensile Safety Chains | Wheels | 17.5 8 Lug |
| Jack | 25K- 2 Speed | Floor | Standard Oak/Treated Pine |
| Neck | N/A | Lights | LED Lights / DOT Specs. |
| Frame | 14" I Beam 30 # per foot | Finish (prep) | 2 Coats Primer |
| Crossmembers | 4" I Beam 80,000# Yield on 12" C | Finish | Paint including underneath |
| Side Rails | 8" Channel | Paint | 2 Coats |
Standard Features
- 45000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Low Profile 34" Deck Height Pierced Frame
- Oak Decking with Recessed Deck Straps
- Step Up To Deck
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- Air Brake Axles
- 102" Wide With D-Rings
- 9700 Hutch Suspension
- Parking Brakes on All Axles
- 235 75R 17.5 18 Ply Radial Tires

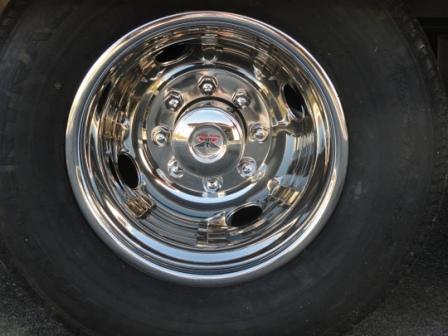

- Hub Piloted Wheels With Outboard Brakes
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath

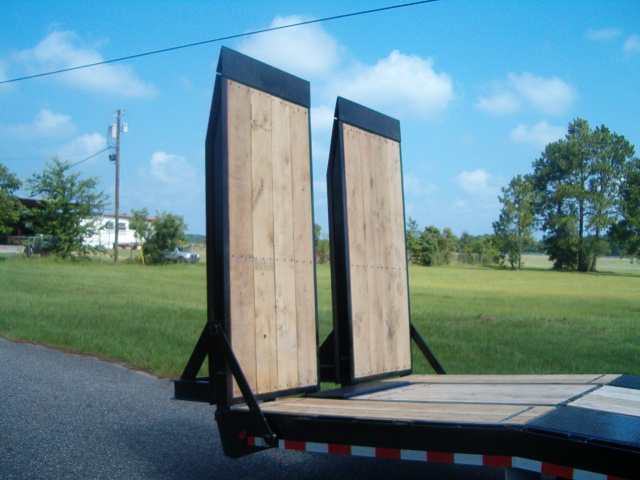

- 5FT Heavy Duty Spring Loaded Dozer Ramps

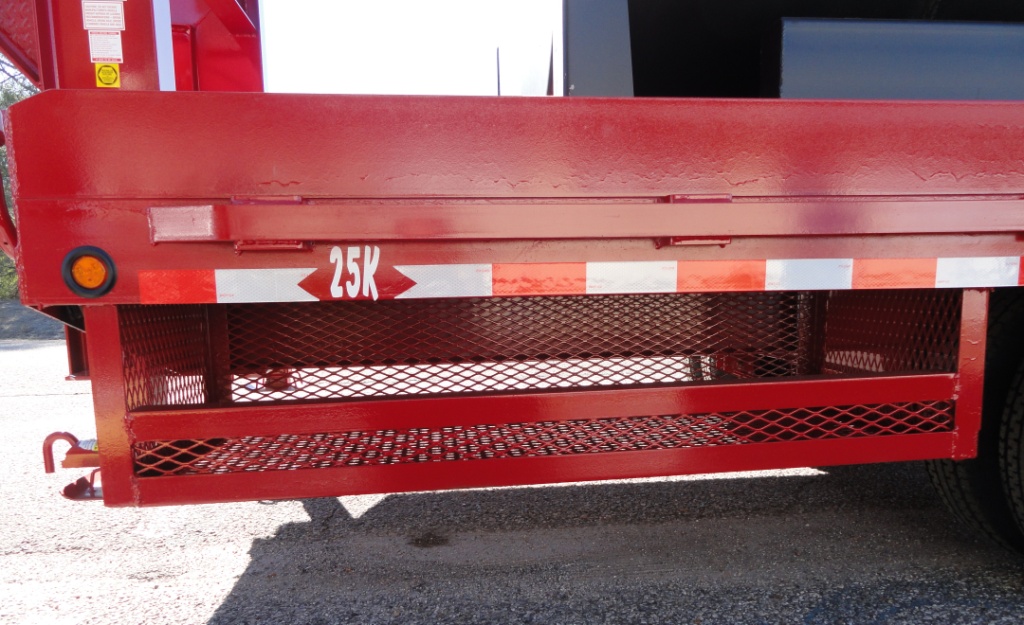

- Storage With Locking Lid
- 25K Jack - 2 Speed
Available Options: On Most Models
- Ramps Various Widths and Lengths
- Additional Deck Length
- Self Cleaning Dove Tail
- Winch and Straps
- Wood Filled Ramps
- Hydraulic Ramps 7" x 36" Different Sizes Available
- Spare Tire and Wheel
- Steel Deck
- Rub Rails and Stake Pockets with Pipe Spools
- Any other custom needs
