Specifications
| G.V.W.R. | 48,000# | Axles | 2-22500# Outboard Brakes Piloted Hub |
| G.A.W.R. (each axle) | 22,500# | Suspension | 9700 Hutch |
| Coupler | 4 Bolt Adjustable Pintle | Tires | 215 75R 17.5 16 Ply Radial |
| Safety Chains | High Tensile Safety Chains | Wheels | 17.5 Dual 8 Lug |
| Jack | 25K-2 Speed | Floor | Standard Oak/Treated Pine |
| Neck | N/A | Lights | LED Lights / DOT Specs. |
| Frame | 14" I Beam 30# per foot | Finish (prep) | 2 Coats Primer |
| Crossmembers | 4" I Beam 80,000# Yield on 12" O.C. | Finish | Paint including underneath |
| Side Rails | 8" Channel | Paint | 2 Coats |
Standard Features
- 40000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Low Profile 34" Deck Height Pierced Frame
- Oak Decking with Recessed Deck Straps
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- 102" Wide
- 9700 Hutch Suspension
- Air brake axles
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
- 5FT Heavy Duty Spring Loaded Dozer Ramps
- Storage With Locking Lid
- 25K Jack - 2 Speed
- Maximum Tongue Weight 6000#
- Front Stop Rail : 8" Channel
- ABS and Parking Brakes on both axles
Available Options: On Most Items
- Ramps Various Widths and Lengths
- Self Cleaning Dove Tail
- Outriggers
- Winch and Straps
- Wood Filled Ramps
- Hydraulic Ramps 7' X 36" Different Sizes Available
- Spare Tire and Wheel
- Steel Deck
- 215 75R 17.5 16 Ply Radials
- Rub Rails and Stake Pockets with Spools
- Upgrade to 52000# GVWR 235 75R 17.5 18 Ply Tires and 25000# axles with 14" @34 Beam
Additional Images

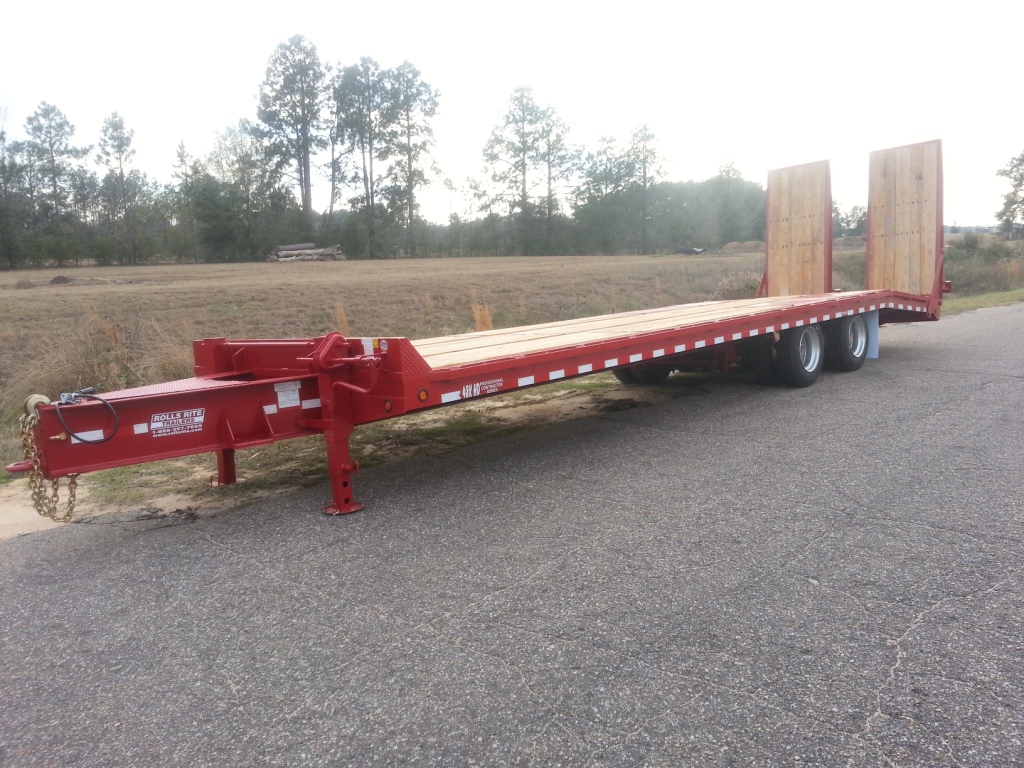

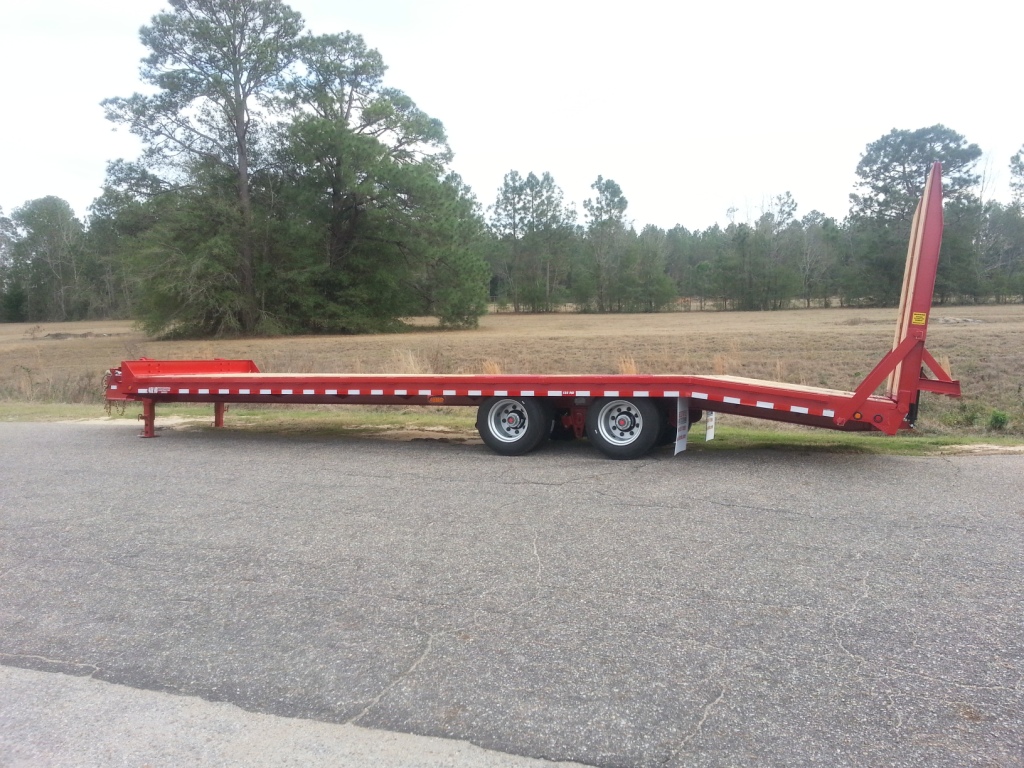

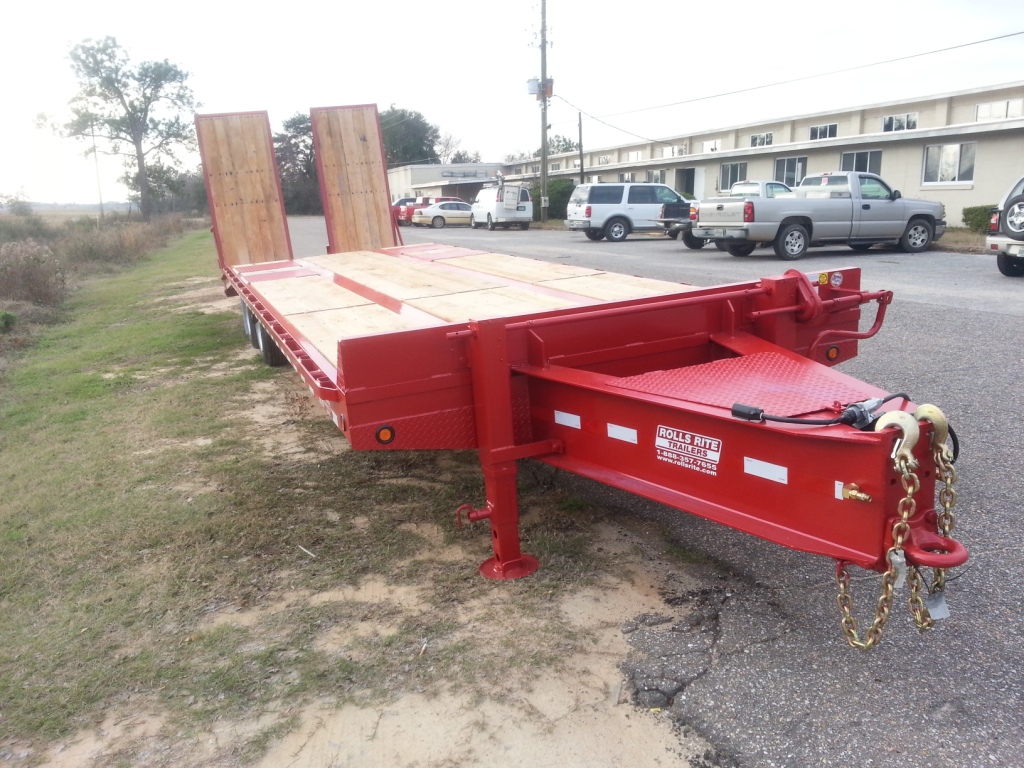

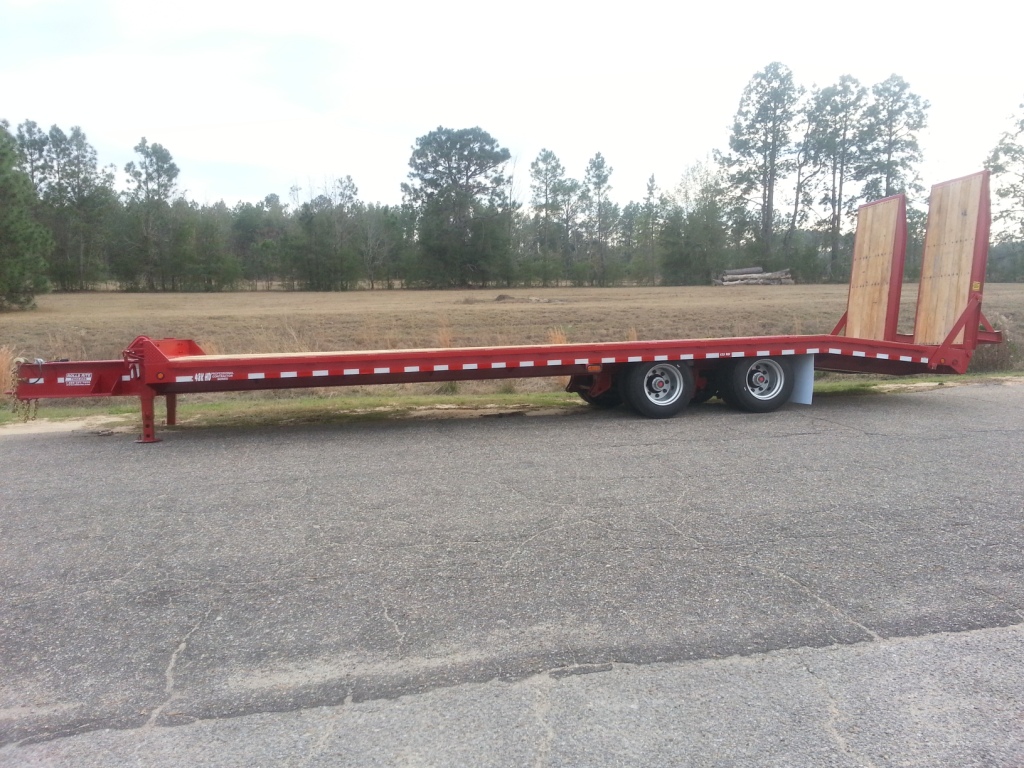

SHOWN WITH OPTIONAL WOOD FILLED SELF CONTAINED HYDRAULIC RAMPS
