25KP25HD-LP SUPER SINGLE

Specifications

G.V.W.R. 25,900 # Axles Tandem 10K Dexter SUPER SINGLE
G.A.W.R. (each axle) 10,000 # Suspension Slipper Spring
Coupler Pintle Tires 23575R17.5 16 PLY RADIALS
Safety Chains High Tensile Safety Chains Wheels 17.5" 8 Lug SINGLES
Jack Dual 12K 2 Speed Floor Standard Oak/Treated Pine
Neck 5 FT With Storage Lights LED Lights / DOT Specs.
Frame 12' I Beam @ 19 # Per Foot Finish (prep) 2 Coats Primer
Crossmembers 4" I Beam 16" O.C. Finish Paint Including Underneath
Side Rails 8" Channel Paint 2 Coats

Standard Features

  • 20000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
  • Low Profile 34" Deck Height Pierced Frame
  • Rub Rails and Stake Pockets with Spools
  • Oak Decking with Recessed Deck Straps
  • Sealed Wiring Harness
  • LED Rubber Mounted Sealed Beam Lights
  • 2 Year Warranty
  • Dexter Axles
  • 102" Wide
  • Slipper Spring Suspension Heavy Duty
  • Electric Brakes on All Axles
  • Radial Tires
  • Meets and Exceeds D.O.T. Regulations
  • Primed and Painted Underneath
  • 5FT Heavy Duty Dozier Ramps
  • Storage With Locking Lid
  • Dual Jacks - 2 Speed
  • Maximum Tongue Weight 6000#
  • Air Brakes

Available Options: on most models

  • Wood Filled Hydraulic Ramps as shown optional
  • Additional Deck length
  • Pop-up Dove Tail
  • Self Cleaning Cleated Dove Tail
  • Wood Filled ramps
  • Spare Tire and wheel
  • Steel Deck
  • D-Rings
  • Any other custom needs

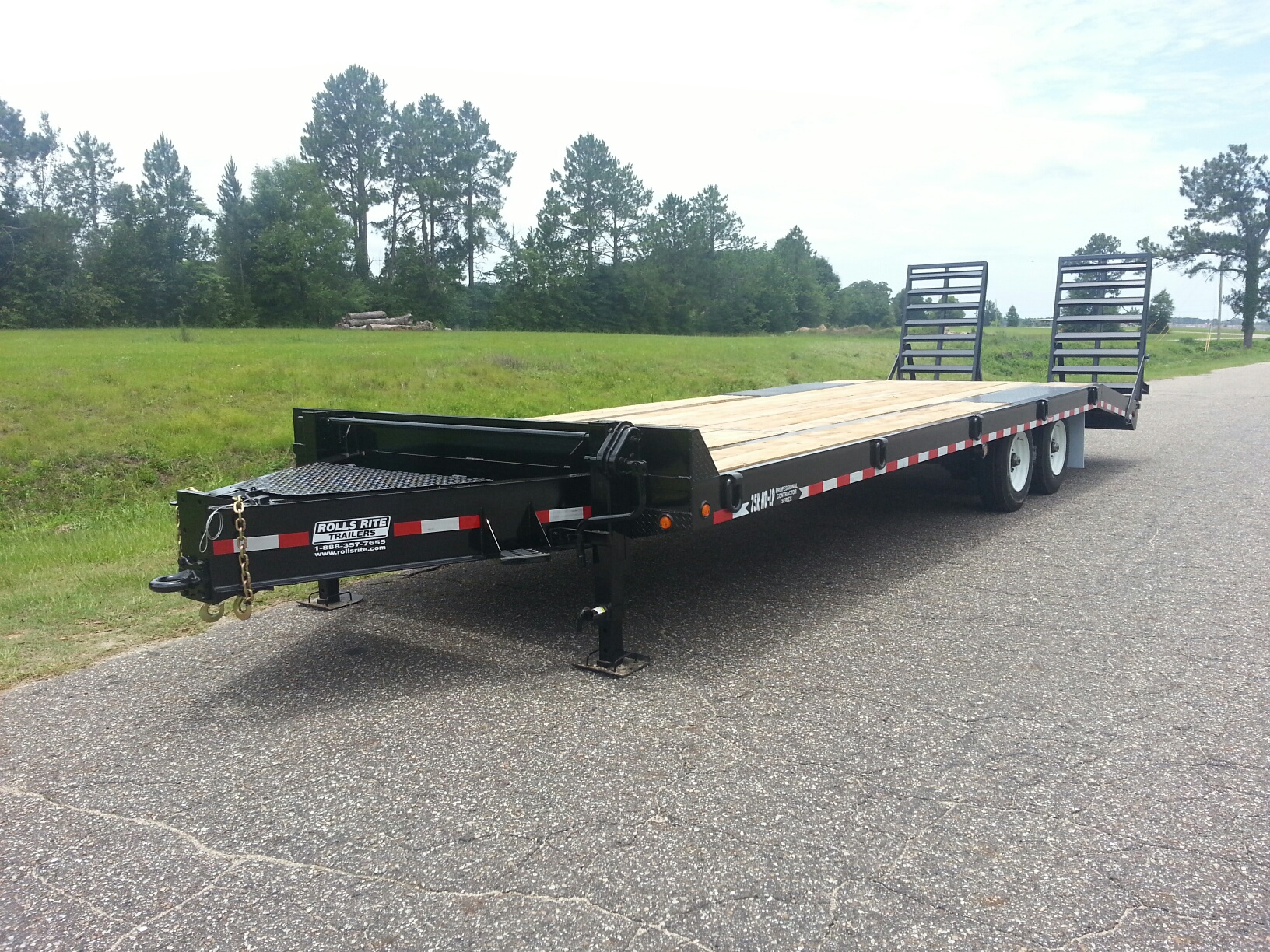

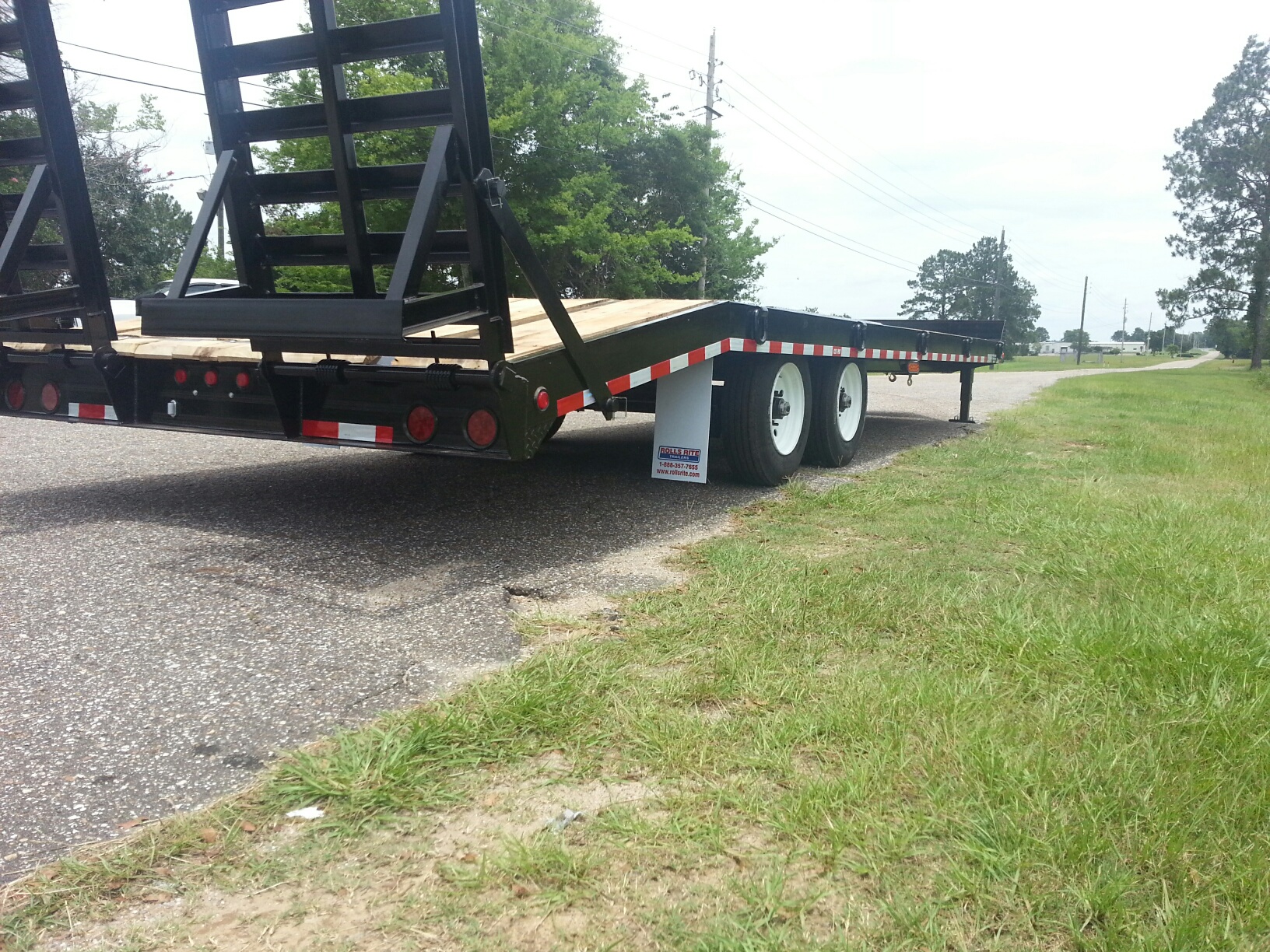

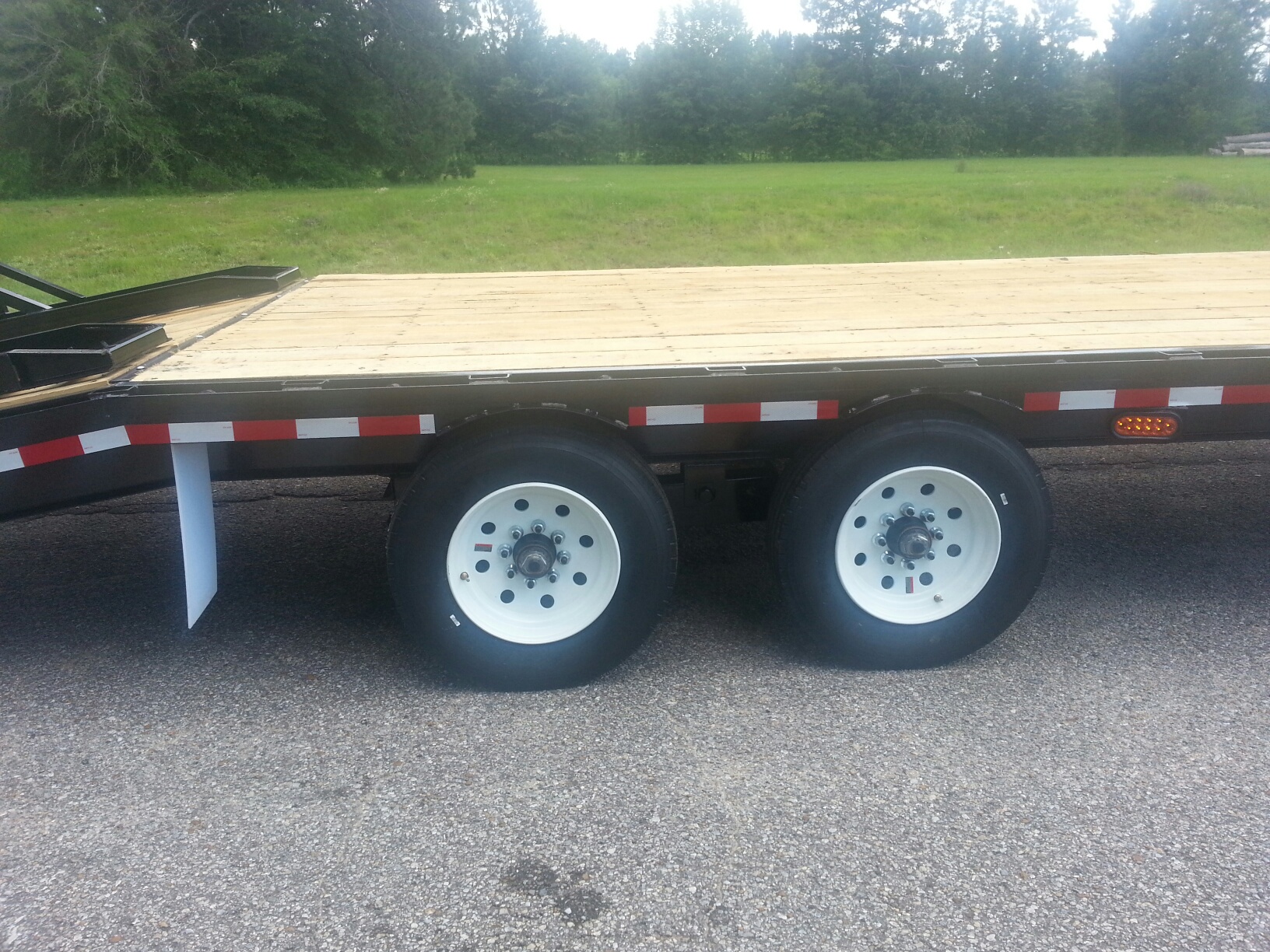

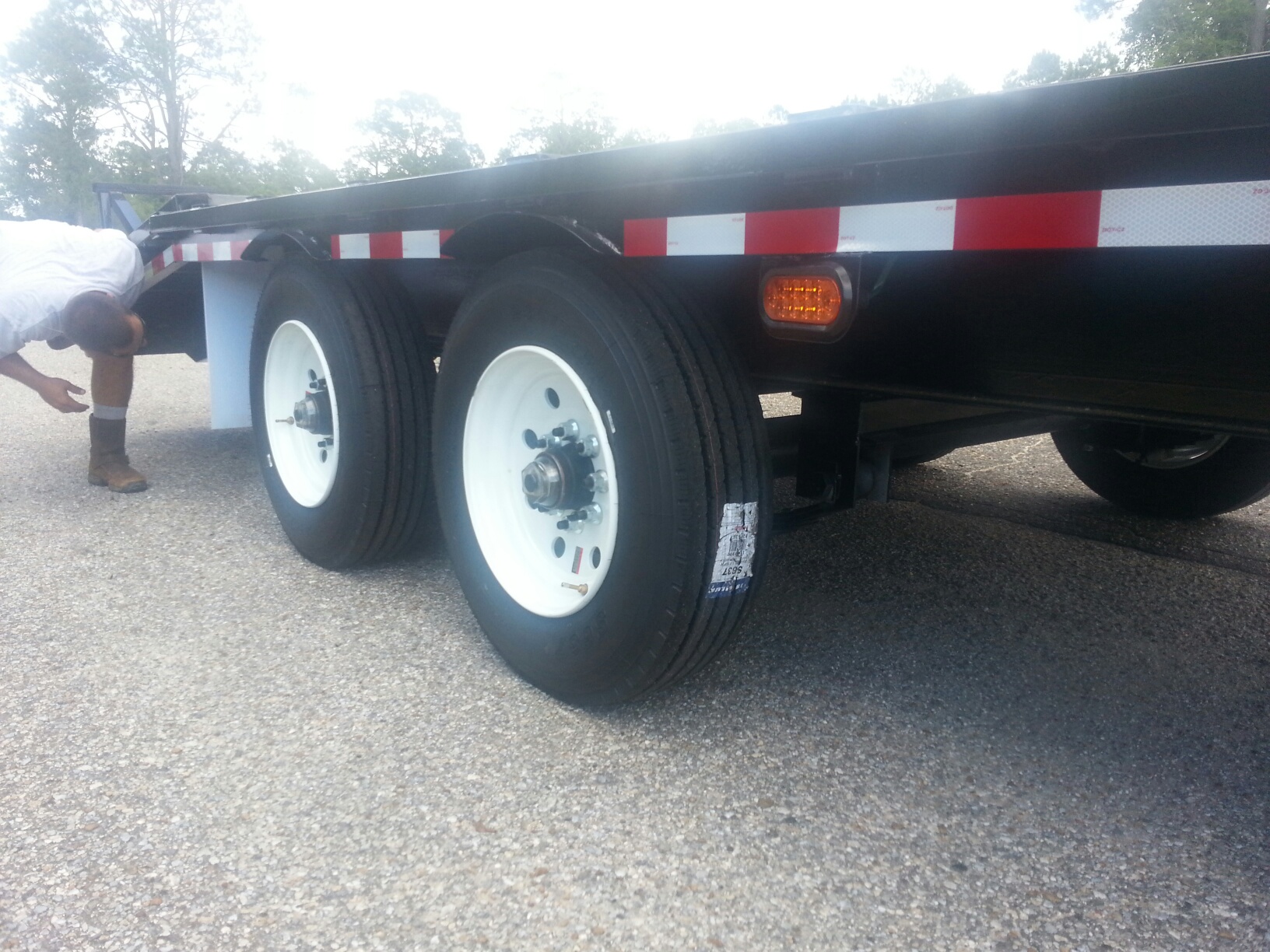

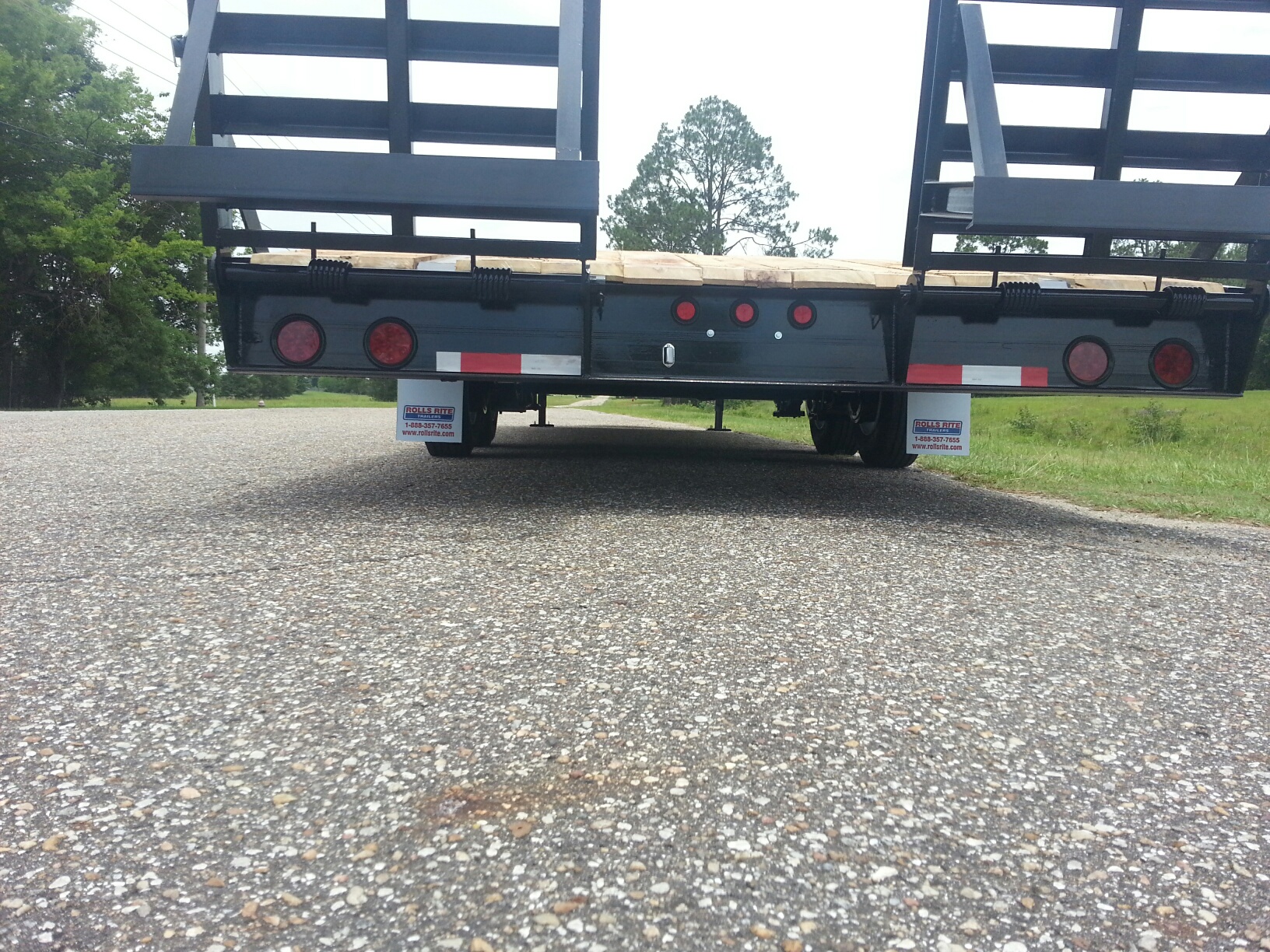

Additional Images
