Specifications
G.V.W.R. | 25,900 # | Axles | 10K Dexter |
G.A.W.R. (each axle) | 10,000 # | Suspension | H.D. Slipper Spring |
Coupler | Adjustable Pintle | Tires | 235 80R 16 |
Safety Chains | High Tensile Safety Chains | Wheels | 16" Dual 8 Lug |
Jack | Dual 12K 2 Speed | Floor | Standard Oak/Treated Pine |
Neck | 5 FT with Storage | Lights | LED Lights / DOT Specs. |
Frame | 12" I Beam @ 19 # Per Foot | Finish (prep) | 2 Coats Primer |
Crossmembers | 4" I Beam 16" O.C. Pierced | Finish | Paint Iincluding underneath |
Side Rails | 8" Channel | Paint | 2 Coats |
Standard Features
- 20000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Low Profile 34" Deck Height Pierced Frame
- Rub Rails and Stake Pockets with Spools
- Oak Decking with Recessed Deck Straps
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- Dexter Axles
- 102" Wide
- Slipper Spring Suspension Heavy Duty
- Electric Brakes on All Axles
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
- 5FT Heavy Duty Dozier Ramps
- Storage With Locking Lid
- Dual Jacks - 2 Speed
- Maximum Tongue Weight 6000#
Available Options: on most models
- Lengths up to 40 Feet
- 29' or Longer-Torque Tube and Belly Strap
- Air Brakes
- Electric Over Hydraulic Brakes Drum or Disc
- Additional Deck Length
- Pop-up Dove Tail
- Power Jacks
- Wood Filled Ramps
- Hydraulic Ramps
- Spare Tire and Wheel
- Steel Deck
- D-Rings
- Any other custom needs
Additional Images

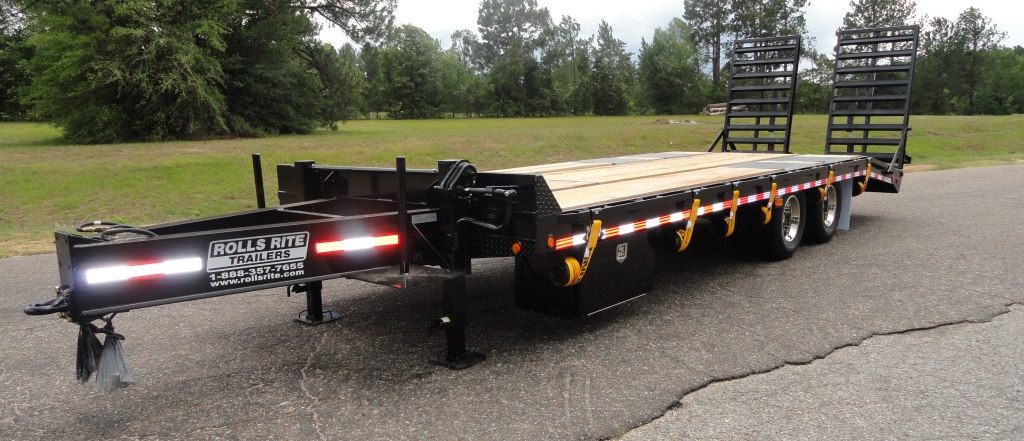

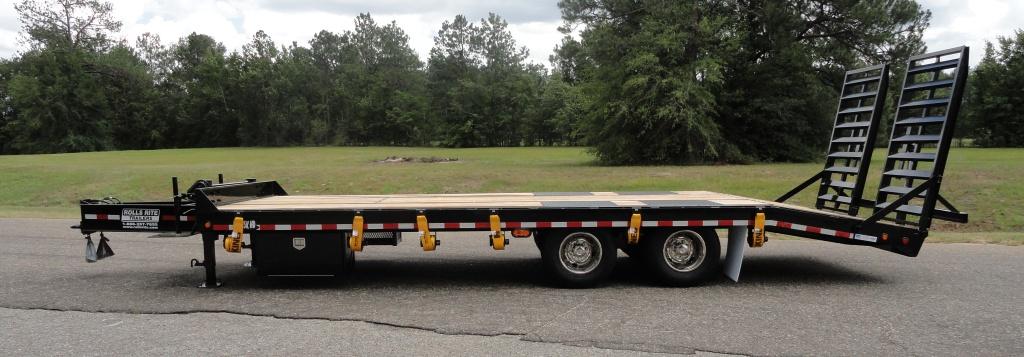

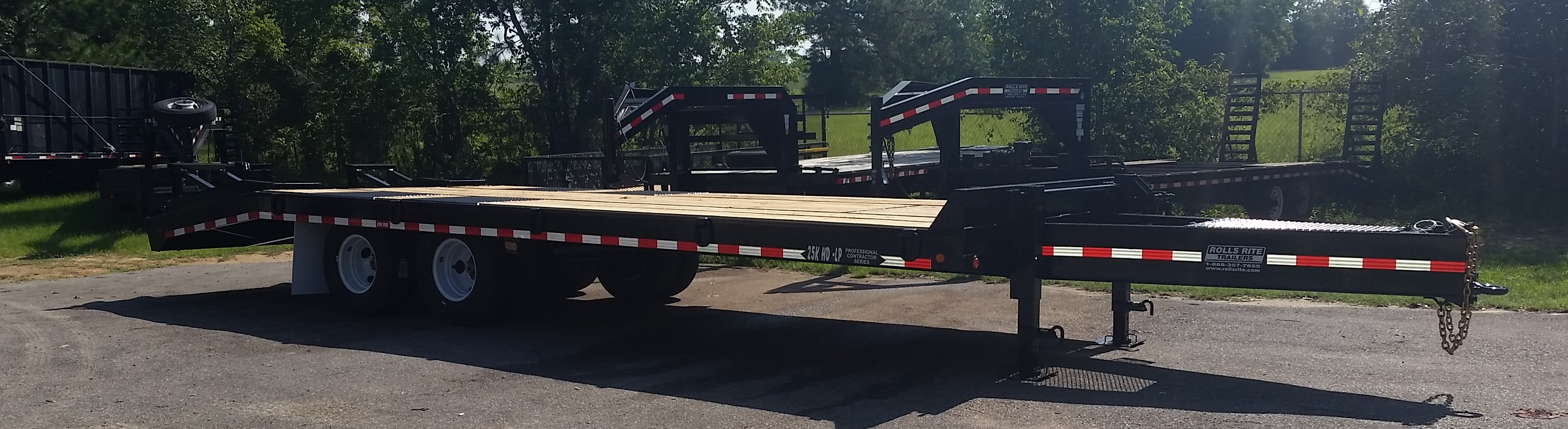

SHOWN WITH OPTIONAL ACCESSORIES

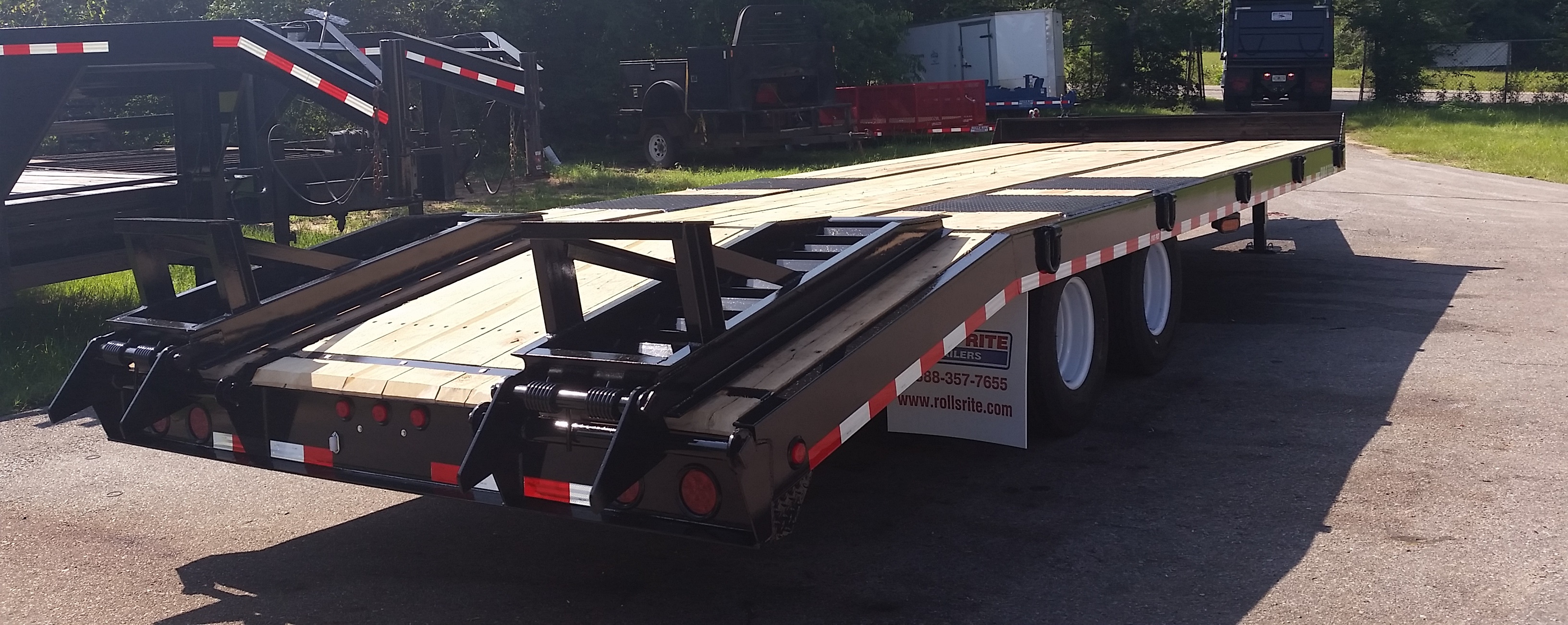

SHOWN WITH OPTIONAL ACCESSORIES
