Specifications
| G.V.W.R. | 25,000 # | Axles | Dual Tandem 10K Dexter Oil Bath |
| G.A.W.R. (each axle) | 10,000 # | Suspension | Slipper Spring |
| Coupler | Adjustable Pintle | Tires | 235 80R 16 Radials |
| Safety Chains | High Tensile Safety Chains | Wheels | 16"X6 8 Lug |
| Jack | 12K Jack | Floor | Standard Oak/Treated Pine |
| Neck | N/A | Lights | LED Lights / DOT Specs. |
| Frame | 10" I Beam | Finish (prep) | 2 Coats Primer |
| Crossmembers | 3" Channel 16" O.C. | Finish | Paint including underneath |
| Side Rails | 6" Channel | Paint | 2 Coats |
Standard Features
- 20000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Oak / Treated Pine Decking
- Rub Rails and Stake Pockets with Spools
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- Dexter Axles
- 102" Wide
- Electric Brakes on All Axles
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted underneath
- Locking Storage
- 5 FT Spring Loaded Ramps
Available Options: on most models
- Air Brakes
- Electric Over Hydraulic Brakes
- Additional Deck Length
- Pop-up Dove Tail
- Wood Filled Ramps
- Spare Tire and Wheel
- Steel Deck
- Twin 2 speed Jacks
- Any other custom needs
Additional Images

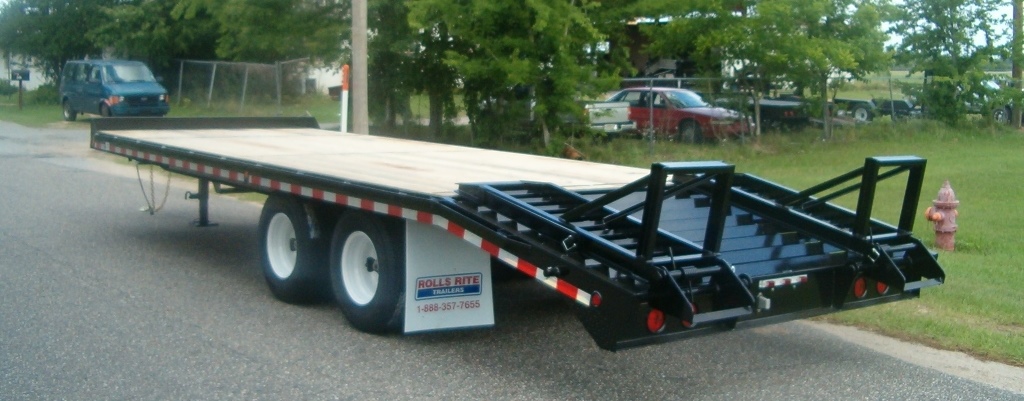

SHOWN WITH OPTIONAL POP UP DOVETAIL

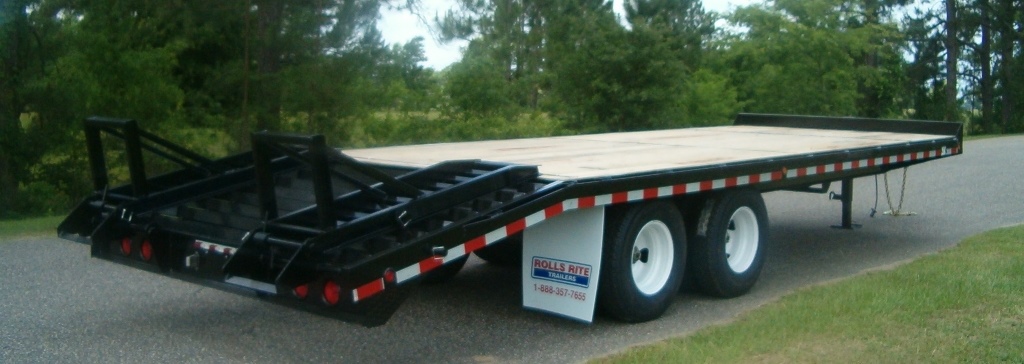

SHOWN WITH OPTIONAL POP UP DOVETAIL
