14KP20DE-DOF Drive Over Fender
Specifications
| G.V.W.R. |
14,000 # |
Axles |
7K Dexter |
| G.A.W.R. (each axle) |
7,000 # |
Suspension |
Slipper Spring |
| Coupler |
Adjustable Pintle |
Tires |
235 80R 16 10 Ply |
| Safety Chains |
High Tensile Safety Chains |
Wheels |
16"X6 8 Lug |
| Jack |
12K Jack |
Floor |
Standard Oak/Treated Pine |
| Neck |
N/A |
Lights |
LED Lights / DOT Specs. |
| Frame |
8" Channel |
Finish (prep) |
2 Coats Primer |
| Crossmembers |
3" Channel 16" O.C. |
Finish |
Paint including underneath |
| Side Rails |
6" Channel |
Paint |
2 Coats |
Standard Features
- 10000# True Hauling Capacity with Adequate Tongue Weight and Evenly Distributed
- Oak / Treated Pine Decking
- Custom Drive Over Fenders
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Llights
- 2 Year Warranty
- Dexter Axles
- 102" Wide
- 29" Deck Height
- Slipper Spring Suspension
- Electric Brakes on All Axles
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
Available Options: on most models
- Gooseneck Option
- Spring Assist Split Ramp Gate
- Dual Jacks
- Additional Deck Length
- Wood Filled Ramps
- Spare Tire and Wheel
- Steel Deck
- Any other custom needs

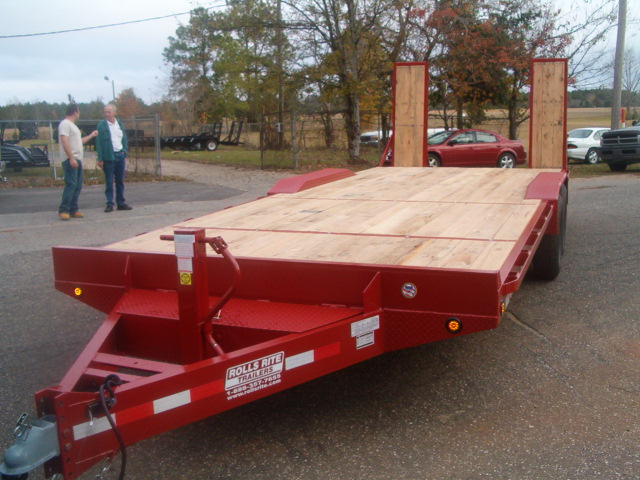

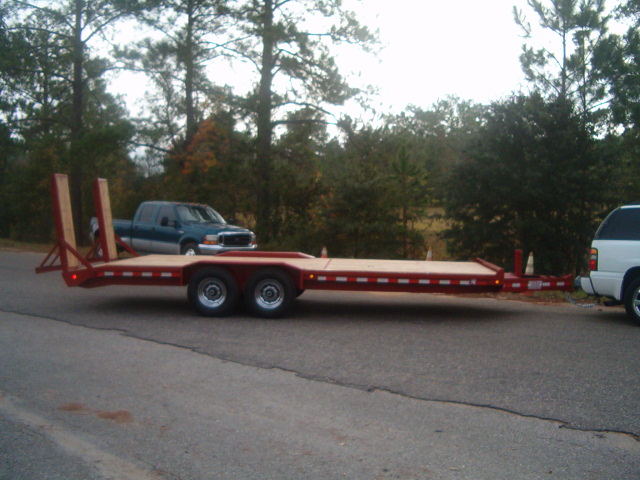

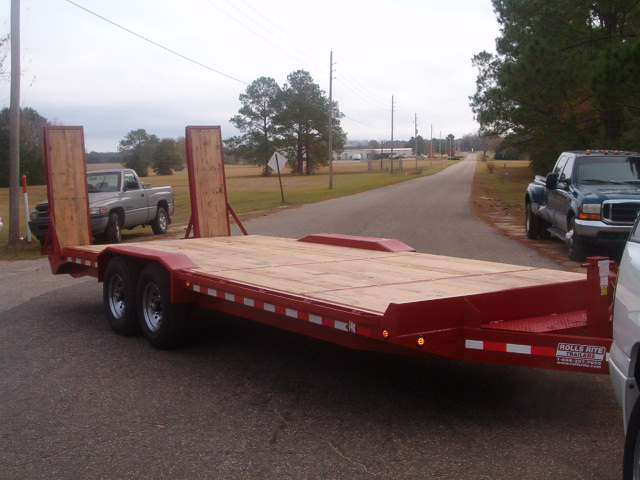

Additional Images
