Specifications
| G.V.W.R. | 70,000 # | Axles | 2-25000#Fleetcraft Air Brakes |
| G.A.W.R. (each axle) | 25000 # | Suspension | 9700# Hutch |
| Coupler | King Pin | Tires | 8-235 75 R 17.5 Radials |
| Safety Chains | High Tensile Safety Chains | Wheels | 8-17.5 Dual Hub Pilot |
| Jack | Dual 50K 2 Speed Jacks | Floor | Standard Oak/Treated Pine |
| Neck | Upper Deck | Lights | LED Lights / DOT Specs. |
| Frame | 16" I Beam 36 # per foot | Finish (prep) | 2 Coats Primer |
| Crossmembers | 4" I Beam 80,000# Yield | Finish | Paint including underneath |
| Side Rails | 10" Channel | Paint | 2 Coats |
Standard Features
- Oak / Treated Pine Decking
- D-Rings
- Recessed Deck Straps
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- 102" Wide
- 9700# Hutch Suspension
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
- 25000#Fleetcraft Air Brake Axles
- Air Brakes with ABS
- Dual 50K 2 speed jacks
Available Options: on most models
- Additional Deck Length
- Pop-up Dove Tail
- Wood Filled Ramps
- Hydraulic Ramps
- Spare Tire and Wheel
- Third Airlifted Axle Available
- Any other custom needs

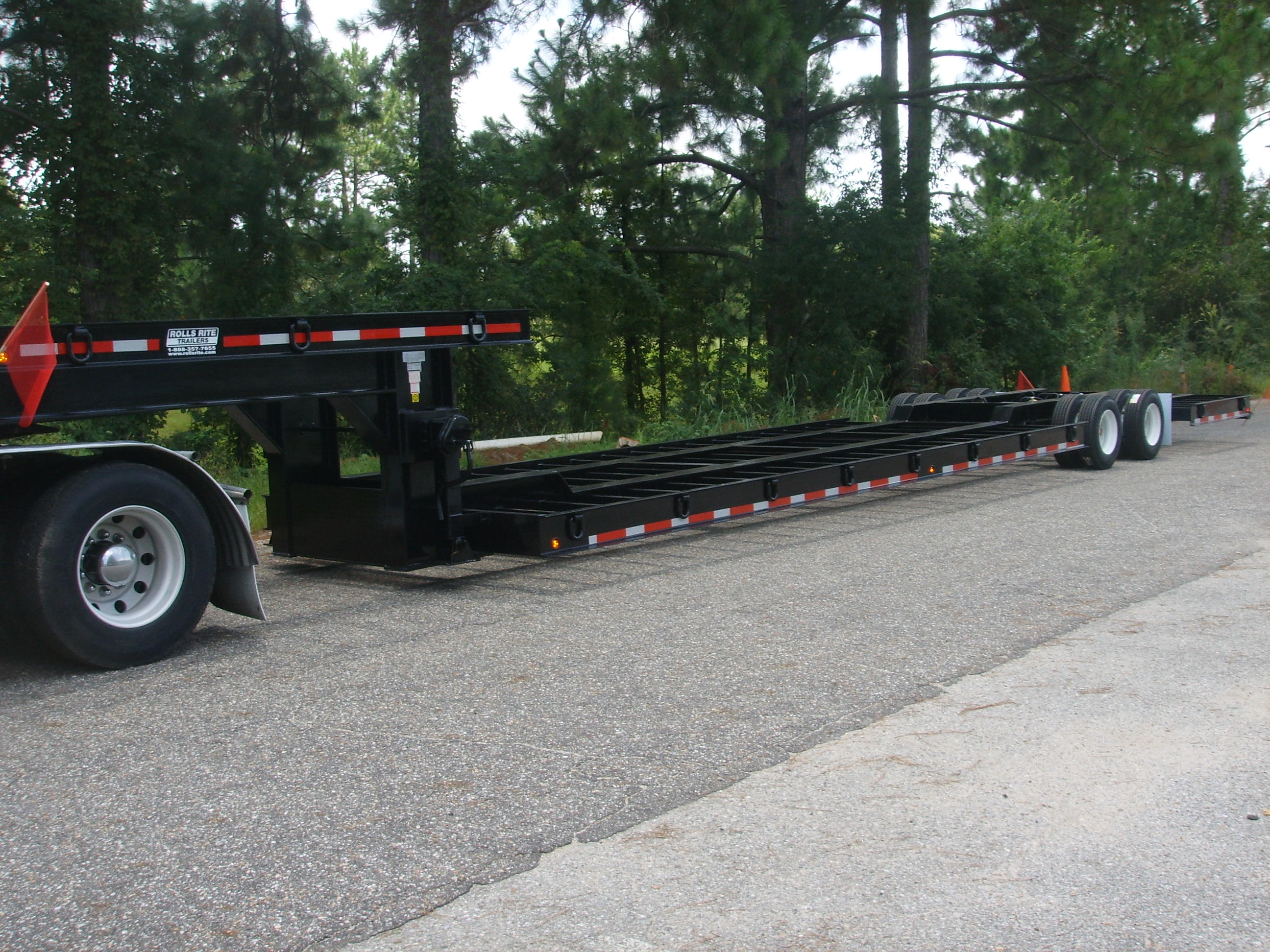

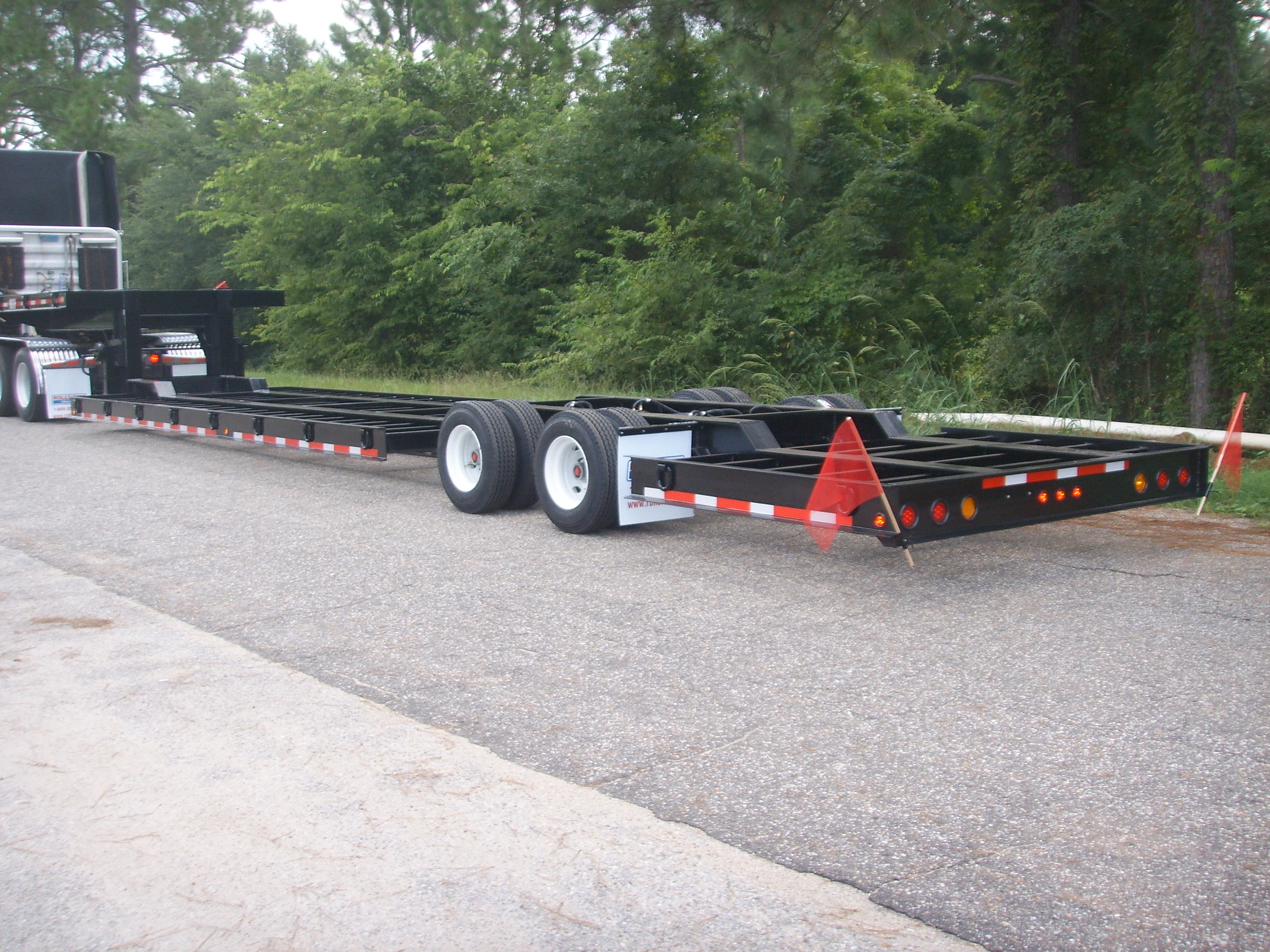

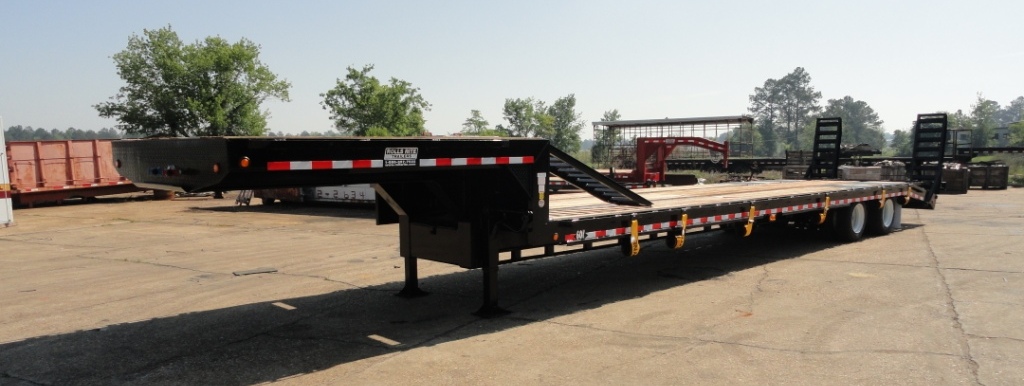

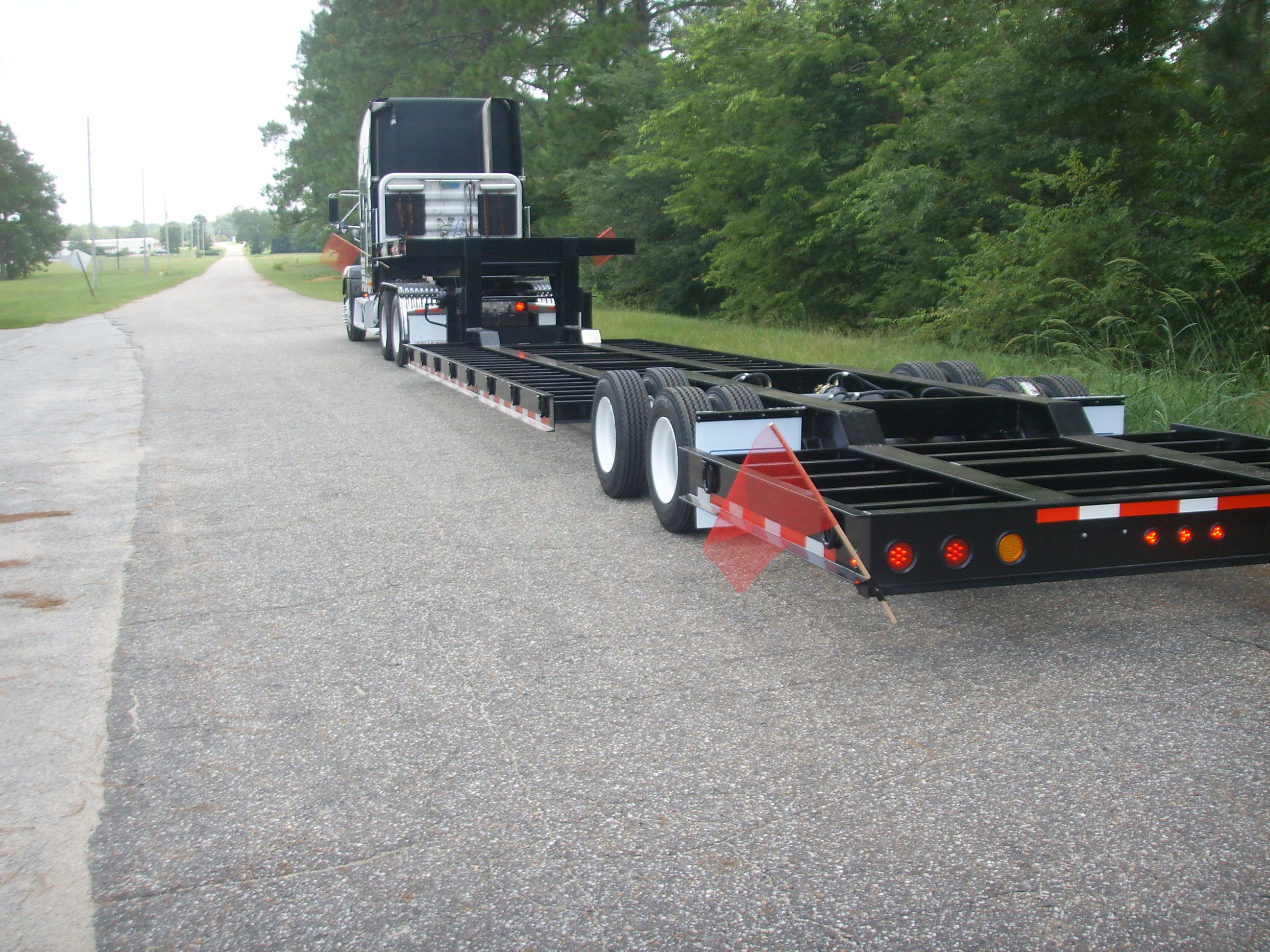

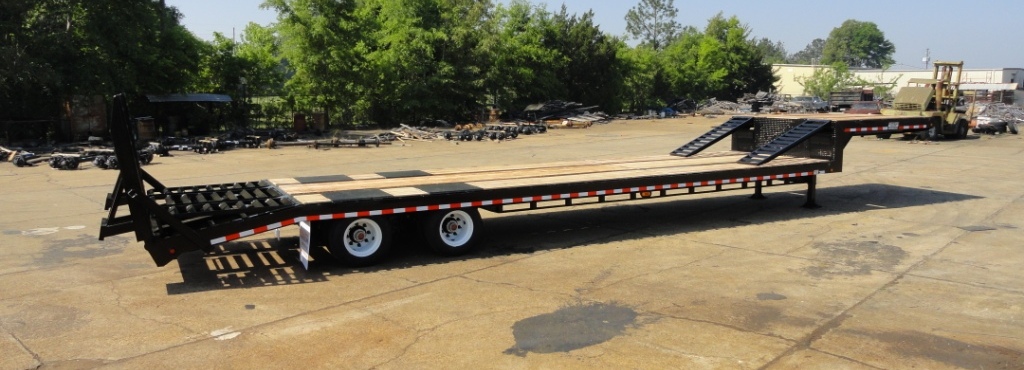

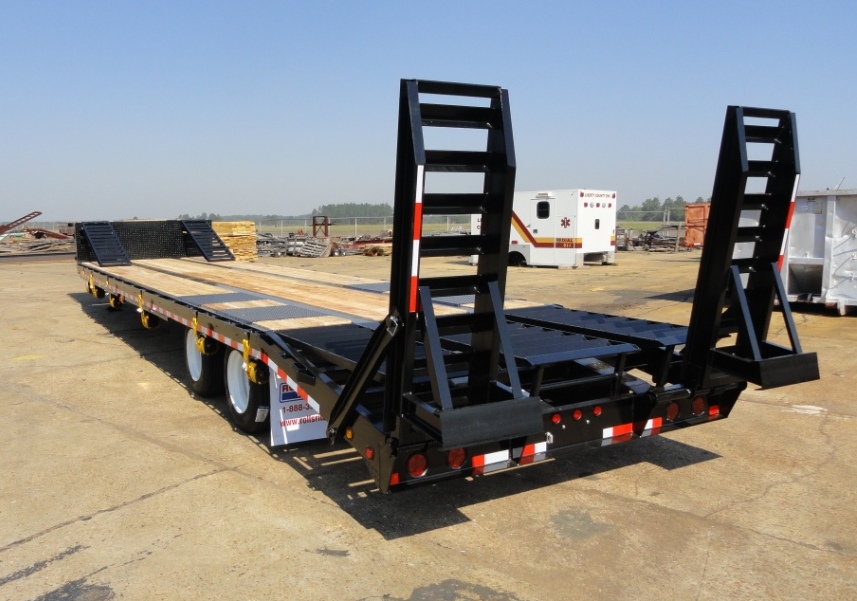

Additional Images
