Specifications
| G.V.W.R. | 60,000 # | Axles | 2-22500# Air brake axles |
| G.A.W.R. (each axle) | 22,500 # | Suspension | 9700# Hutch |
| Coupler | King Pin | Tires | 8-215 75 R 17.5 |
| Safety Chains | High Tensile Safety Chains | Wheels | 8-17.5 Dual Hub Pilot |
| Jack | Dual 50K 2 speed Jacks | Floor | Standard Oak/Treated Pine |
| Neck | Optional Upper Deck | Lights | LED Lights / DOT Specs. |
| Frame | 14" I Beam 30 # per foot | Finish (prep) | 2 Coats Primer |
| Crossmembers | 4" I Beam on 12" C 80,000# Yield | Finish | Paint including underneath |
| Side Rails | 8" Channel | Paint | 2 Coats |
Standard Features

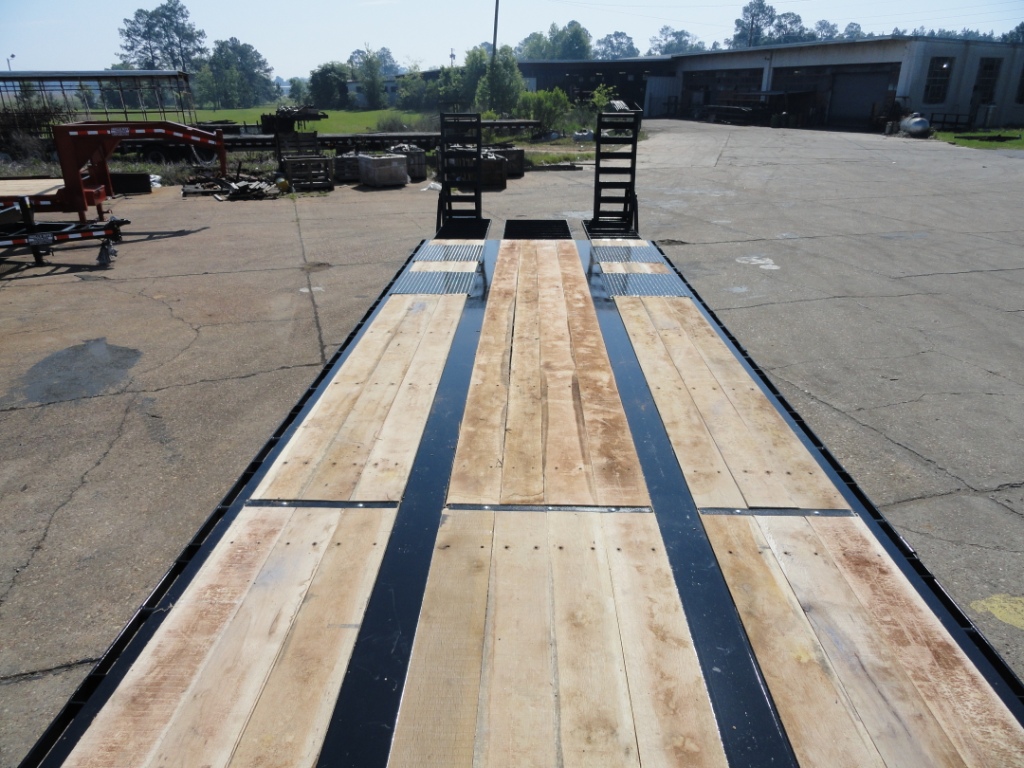

- Oak / Treated Pine Decking
- Recessed Deck Straps
- Sealed Wiring Harness
- LED Rubber Mounted Sealed Beam Lights
- 2 Year Warranty
- 102" wide
- 9700# Hutch Suspension
- Radial Tires
- Meets and Exceeds D.O.T. Regulations
- Primed and Painted Underneath
- 22,500# Air Brake Axles Outboard Brake Pilot Hub
- Air Brakes with ABS
- Dual 50K 2 Speed Jacks
Available Options: on most models
- Additional Deck Length
- Pop-up Dove Tail
- Wood Filled Ramps
- Hydraulic Ramps
- Spare Tire and Wheel
- Third Airlifted Axle Available
- Any other custom needs
